A trellis frame consisting of L4x3x3/8 or L4x4x3/8 angles at the top and bottom connects to a hollow structural section HSS5x5 support column. A quarter-inch steel plate is welded to the HSS member. Fillet welds of one-quarter inch size are applied on the near side and far side, and three sides as indicated. An eighth-inch seal weld is provided at specific joints.

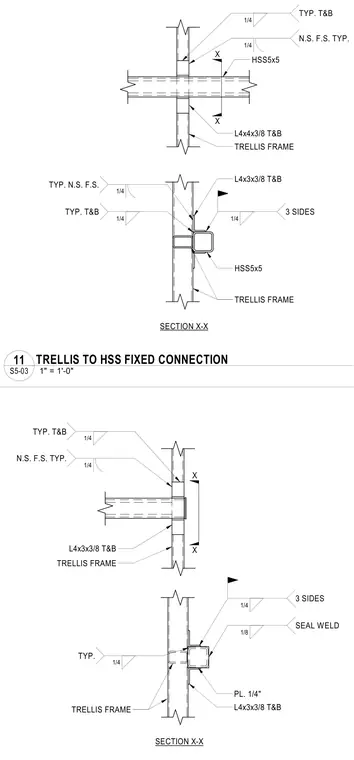

TRELLIS FRAME L4x4x3/8 T&B HSS5x5 1/4 N.S. F.S. TYP. 1/4 TYP. T&B X X SECTION X-X TRELLIS FRAME HSS5x5 L4x3x3/8 T&B 1/4 TYP. T&B 1/4 3 SIDES 1/4 TYP. N.S. F.S. SECTION X-X TRELLIS FRAME L4x3x3/8 T&B TRELLIS FRAME L4x3x3/8 T&B PL. 1/4" 1/4 N.S. F.S. TYP. 1/4 TYP. T&B 1/4 TYP. 1/8 SEAL WELD 1/4 3 SIDES X X 1" = 1'-0" S5-03 11 TRELLIS TO HSS FIXED CONNECTION
