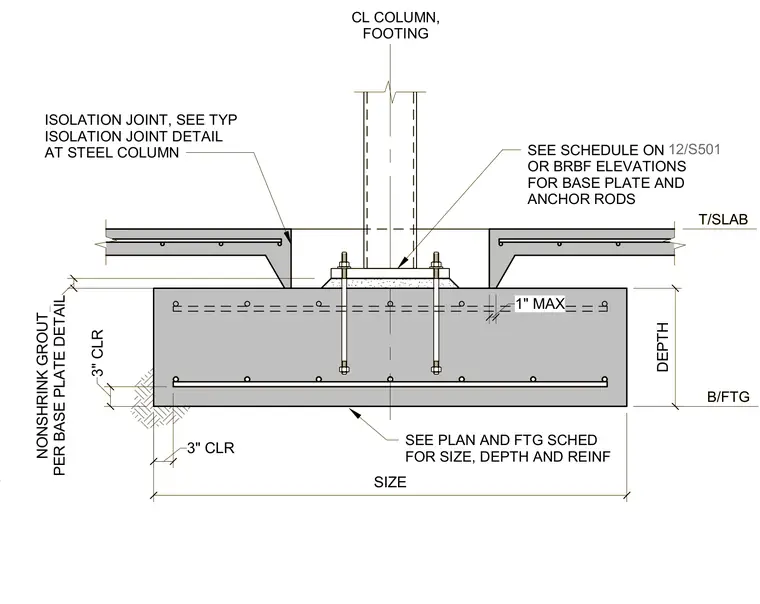

A steel column connects to a reinforced concrete footing via a base plate and anchor rods sized per the structural schedule or braced frame elevations. Nonshrink grout is placed beneath the base plate per the base plate detail, maintaining a specified clearance above the footing. A concrete slab-on-grade surrounds the column with a one-inch maximum isolation joint. The footing has three inches of concrete clear cover to the reinforcement at the bottom and sides.
B/FTG T/SLAB CL COLUMN, FOOTING SEE PLAN AND FTG SCHED FOR SIZE, DEPTH AND REINF DEPTH SEE SCHEDULE ON OR BRBF ELEVATIONS FOR BASE PLATE AND ANCHOR RODS 3" CLR SIZE 3" CLR 1" MAX ISOLATION JOINT, SEE TYP ISOLATION JOINT DETAIL AT STEEL COLUMN PER BASE PLATE DETAIL NONSHRINK GROUT 12/S501 B/FTG T/SLAB CL COLUMN, FOOTING SEE PLAN AND FTG SCHED FOR SIZE, DEPTH AND REINF DEPTH SEE SCHEDULE ON OR BRBF ELEVATIONS FOR BASE PLATE AND ANCHOR RODS 3" CLR SIZE 3" CLR 1" MAX ISOLATION JOINT, SEE TYP ISOLATION JOINT DETAIL AT STEEL COLUMN PER BASE PLATE DETAIL NONSHRINK GROUT 12/S501
