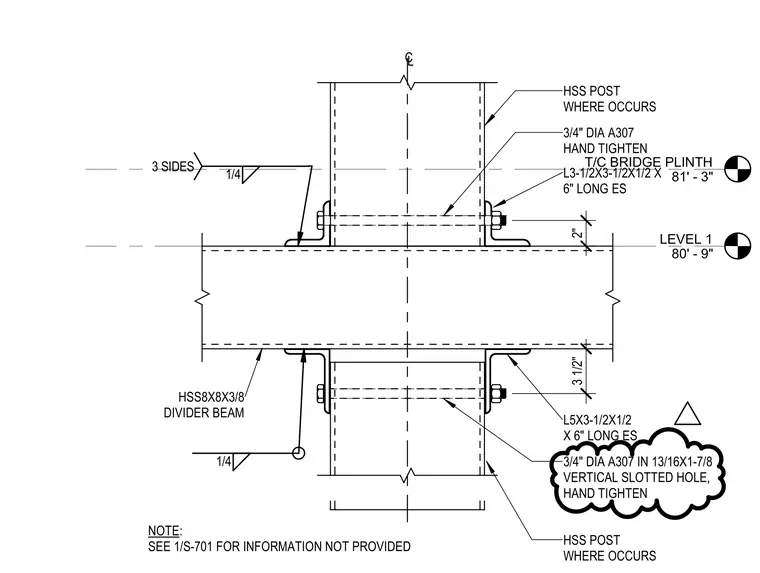

An HSS post connects to an HSS 8x8x3/8 divider beam using structural steel angles on each side. The upper connection uses an L5x3-1/2x1/2 angle six inches long secured with a three-quarter-inch diameter A307 bolt in a thirteen-sixteenths by one-and-seven-eighths-inch vertical slotted hole, hand tightened. The lower connection uses an L3-1/2x3-1/2x1/2 angle six inches long secured with a three-quarter-inch diameter A307 bolt, hand tightened. A quarter-inch fillet weld on three sides fastens the angles to the HSS post where it occurs.
LEVEL 1 80' - 9" T/C BRIDGE PLINTH 81' - 3" 3 1/2" 2" HSS8X8X3/8 DIVIDER BEAM L5X3-1/2X1/2 X 6" LONG ES 3/4" DIA A307 IN 13/16X1-7/8 VERTICAL SLOTTED HOLE, HAND TIGHTEN L3-1/2X3-1/2X1/2 X 6" LONG ES 3/4" DIA A307 HAND TIGHTEN HSS POST WHERE OCCURS 1/4 3 SIDES 1/4 C L HSS POST WHERE OCCURS NOTE: SEE 1/S-701 FOR INFORMATION NOT PROVIDED
