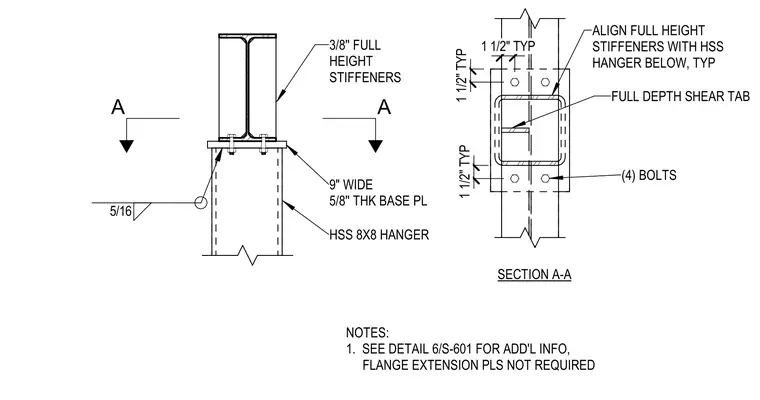

An HSS 8x8 hanger connects to a level 3 beam through a 5/8-inch thick by 9-inch wide base plate welded with a 5/16-inch fillet weld. The assembly features three-eighths-inch full height stiffeners aligned with the HSS hanger below and four bolts spaced 1 1/2 inches typical. A full depth shear tab is welded to the web of the supporting beam. Flange extension plates are not required for this connection configuration.
3/8'' FULL HEIGHT STIFFENERS 9" WIDE 5/8'' THK BASE PL HSS 8X8 HANGER 5/16 A A ALIGN FULL HEIGHT STIFFENERS WITH HSS HANGER BELOW, TYP (4) BOLTS 1 1/2" TYP 1 1/2" TYP 1 1/2" TYP SECTION A-A FULL DEPTH SHEAR TAB NOTES: 1. SEE DETAIL 6/S-601 FOR ADD'L INFO, FLANGE EXTENSION PLS NOT REQUIRED
