Concrete panels meet at an offset joint tied together with a splice plate of width 'W' and thickness per schedule. A chord angle is positioned below the panel bearing condition per framing details. Typical embed plates with anchors cast into the concrete secure the connection. Weld sizes and lengths 'L' are coordinated per the schedule.

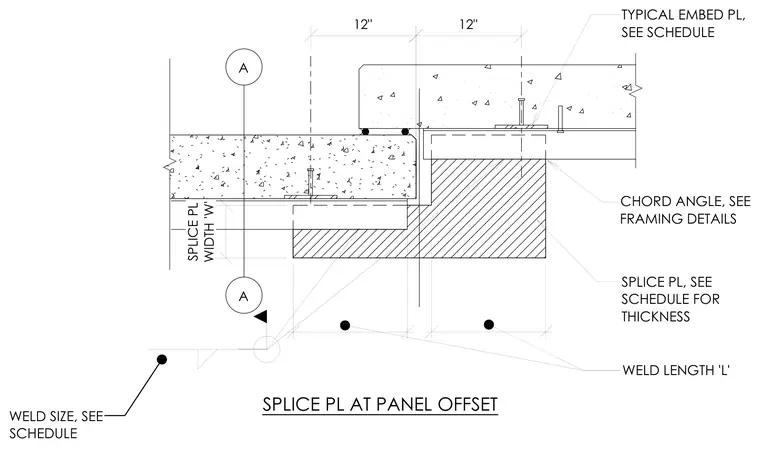

A A SPLICE PL AT PANEL OFFSET 12" 12" SPLICE PL WIDTH 'W' WELD SIZE, SEE SCHEDULE CHORD ANGLE, SEE FRAMING DETAILS TYPICAL EMBED PL, SEE SCHEDULE SPLICE PL, SEE SCHEDULE FOR THICKNESS WELD LENGTH 'L'
