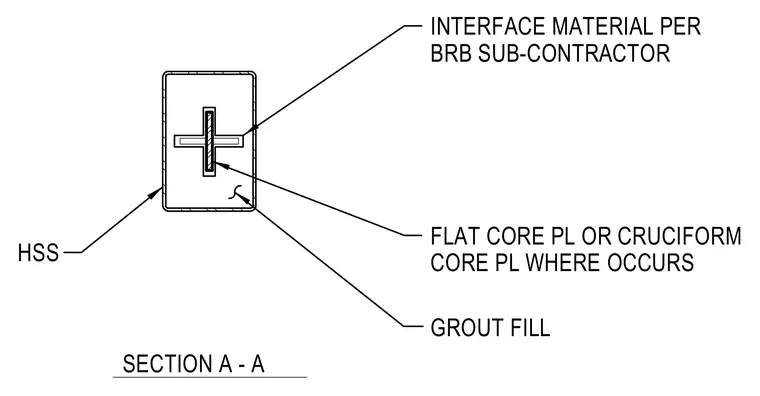

A hollow structural section column encloses a flat core plate or cruciform core plate where required by design. The internal cavity receives grout fill surrounding the core plate assembly. Interface material is installed per the buckling-restrained brace subcontractor specifications.
SECTION A - A GROUT FILL FLAT CORE PL OR CRUCIFORM HSS CORE PL WHERE OCCURS INTERFACE MATERIAL PER BRB SUB-CONTRACTOR
