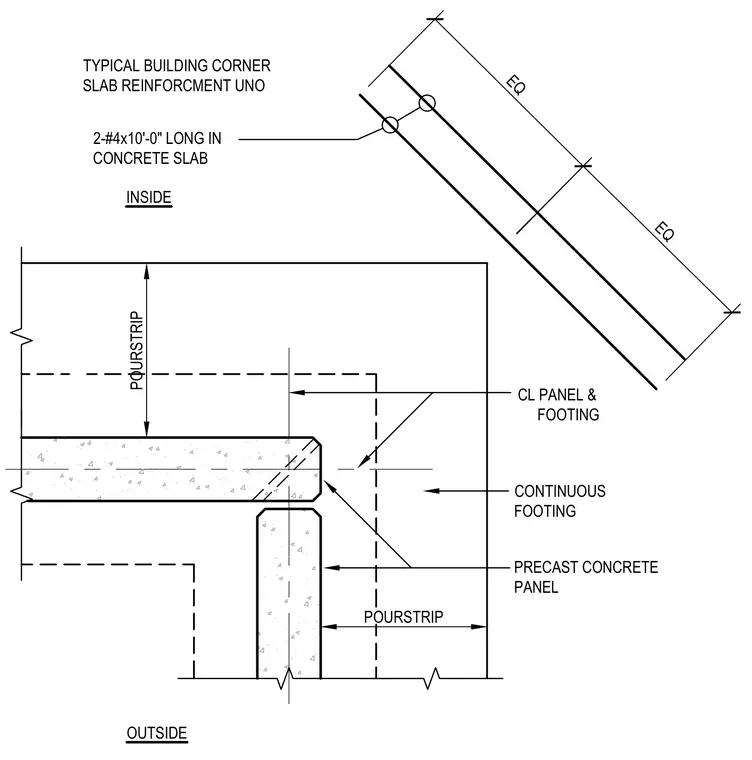

This structural plan detail shows the typical building corner reinforcement layout for a concrete slab intersecting precast concrete panels and a continuous footing. Two number 4 reinforcing bars, each ten feet long, are placed in the concrete slab unless noted otherwise. Pour strips are designated along the interior interfaces between the slab and the continuous footing. Centerline dimensions align the precast panel and continuous footing.
EQ EQ 2-#4x10'-0" LONG IN CONCRETE SLAB TYPICAL BUILDING CORNER SLAB REINFORCMENT UNO INSIDE OUTSIDE CL PANEL & FOOTING CONTINUOUS FOOTING PRECAST CONCRETE PANEL POURSTRIP POURSTRIP
