Precast Wall Panel Foundation and Slab Connection

Materials

Concrete Steel Timber / Wood Masonry / CMU

Elements

Walls Ramps Floors / Slabs Foundations / Footings Arches Site / Paving Anchors / Embeds Connections / Plates Reinforcing

Connections

Rebar Splice / Development

About this detail

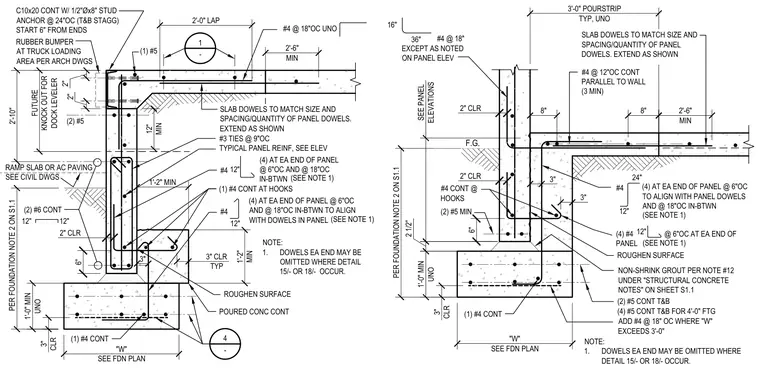

Precast concrete wall panel bearing on a continuous concrete footing with two continuous five bars top and bottom, and four five bars top and bottom for four-foot footings. Four four bars are placed at each end of the panel at six inches on center and eighteen inches on center in between to align with the panel dowels. A two-foot-six-inch minimum slab dowel matches the size, spacing, and quantity of the panel dowels, extending into a three-foot pour strip. A continuous channel section ten by twenty with one-half-inch diameter by eight-inch stud anchors at twenty-four inches on center staggered is cast at the top corner with a rubber bumper at the truck loading area per architectural drawings. Two six bars run continuous with twelve-inch laps at the base, and four four bars continue at hooks with two inches of clearance typical. A future knock out for a dock leveler is provided adjacent to the ramp slab or asphaltic concrete paving per civil drawings.
