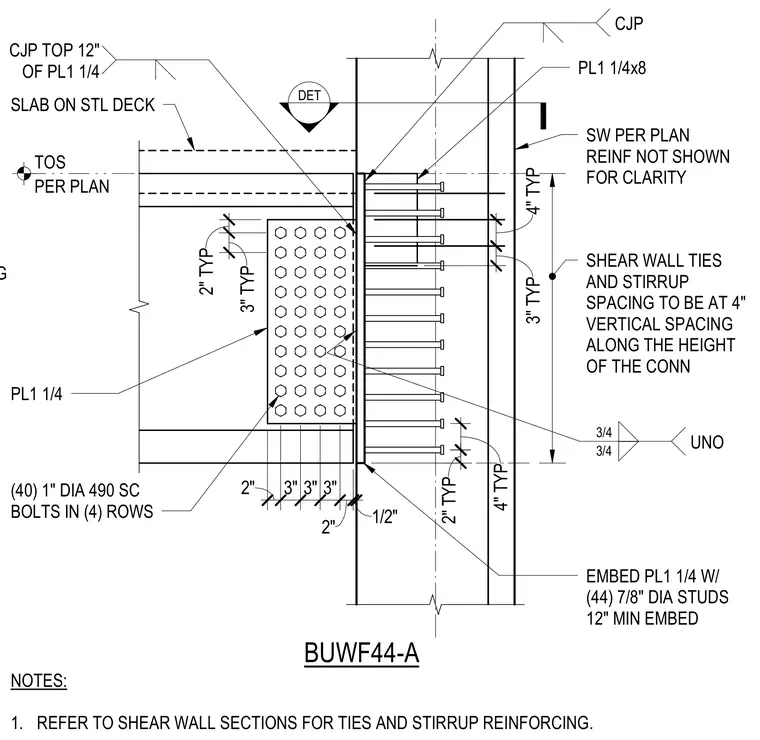

A heavy framing connection between a floor beam and a reinforced concrete shear wall includes a structural steel plate (PL 1-1/4) with forty 1-inch diameter A490 slip-critical bolts arranged in four rows connecting the beam web. The embed plate in the shear wall features forty-four 7/8-inch diameter headed studs with a 12-inch minimum embedment. A complete joint penetration (CJP) weld secures the top 12 inches of the connection plate unless noted otherwise, while shear wall ties and stirrups maintain a 4-inch vertical spacing along the height of the connection. Concrete reinforcing is omitted from the graphic for clarity.
DET BUWF44-A 1/2" 2" 3" 3" 3" 2" 2" TYP 4" TYP 2" TYP 3" TYP SHEAR WALL TIES AND STIRRUP SPACING TO BE AT 4" VERTICAL SPACING ALONG THE HEIGHT OF THE CONN PL1 1/4x8 CJP SLAB ON STL DECK PER PLAN TOS PL1 1/4 (40) 1" DIA 490 SC BOLTS IN (4) ROWS SW PER PLAN REINF NOT SHOWN FOR CLARITY EMBED PL1 1/4 W/ (44) 7/8" DIA STUDS 12" MIN EMBED NOTES: 1. REFER TO SHEAR WALL SECTIONS FOR TIES AND STIRRUP REINFORCING. CJP TOP 12" OF PL1 1/4 UNO 3/4 3/4 3" TYP 4" TYP AND STIRRUP SPACING TO BE AT 4" VERTICAL
