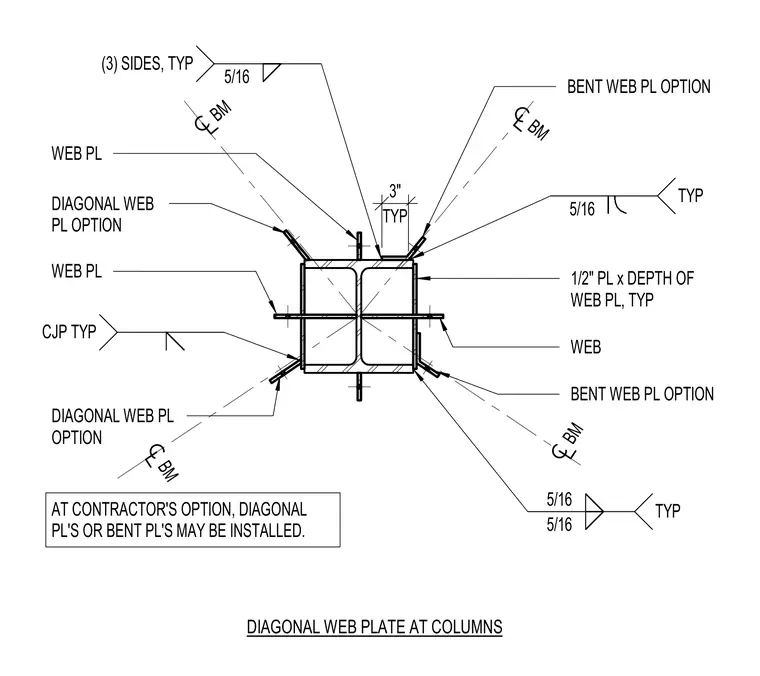

Steel column web plate connections feature optional diagonal web plates or bent web plates at the contractor's discretion. The assembly includes one-half-inch plates matching the depth of the web plate typically, with five-sixteenth-inch fillet welds and complete joint penetration welds specified throughout. Centerlines of beams frame into the column flanges and web across multiple orientations with three-inch typical spacing. Notes allow for either flat diagonal plates or bent plates to be installed at the column corners.
BM BM BM BM WEB PL DIAGONAL WEB PL OPTION DIAGONAL WEB PL OPTION CJP TYP TYP 3" WEB PL WEB BENT WEB PL OPTION BENT WEB PL OPTION 1/2" PL x DEPTH OF WEB PL, TYP 5/16 TYP 5/16 5/16 TYP 5/16 (3) SIDES, TYP DIAGONAL WEB PLATE AT COLUMNS AT CONTRACTOR'S OPTION, DIAGONAL PL'S OR BENT PL'S MAY BE INSTALLED.
