An elevator pit ladder constructed with two-and-a-half-inch by three-eighths-inch side rails features three-quarter-inch-diameter rungs set into and welded to the side rails on one-foot centers. The ladder secures to the concrete pit floor using a clip angle attachment and anchors. A three-eighths-inch bent plate welded to the stringer connects to the partition system via an expansion bolt and welds to the divider beam. The ladder top is finished with a one-half-inch radius bend.

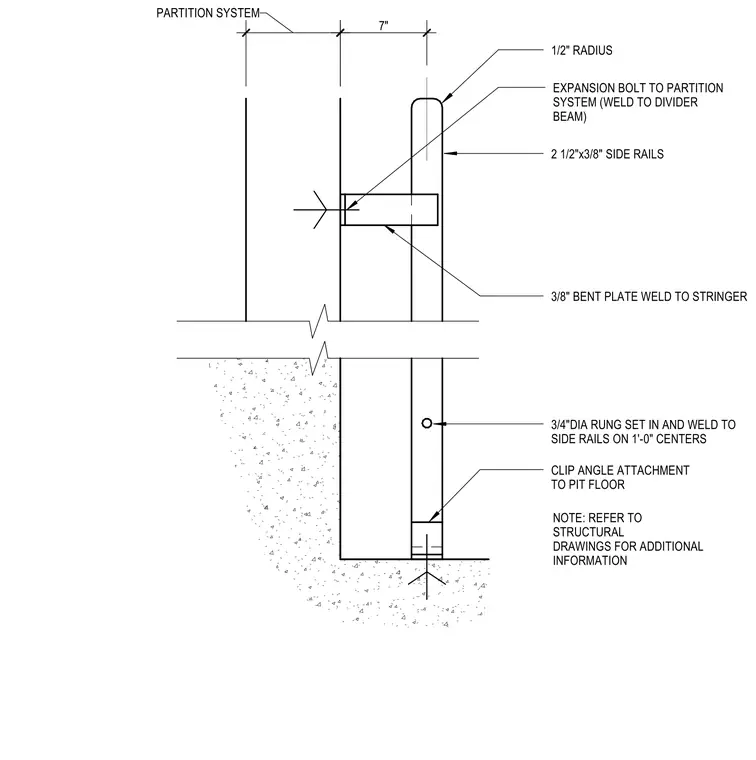

1/2" RADIUS 2 1/2"x3/8" SIDE RAILS 3/8" BENT PLATE WELD TO STRINGER 3/4"DIA RUNG SET IN AND WELD TO SIDE RAILS ON 1'-0" CENTERS CLIP ANGLE ATTACHMENT TO PIT FLOOR NOTE: REFER TO STRUCTURAL DRAWINGS FOR ADDITIONAL INFORMATION EXPANSION BOLT TO PARTITION SYSTEM (WELD TO DIVIDER BEAM) 7" PARTITION SYSTEM
