Structural · S-J2QQD

Typical Column Ties and Beam Stirrups

Elements

About this detail

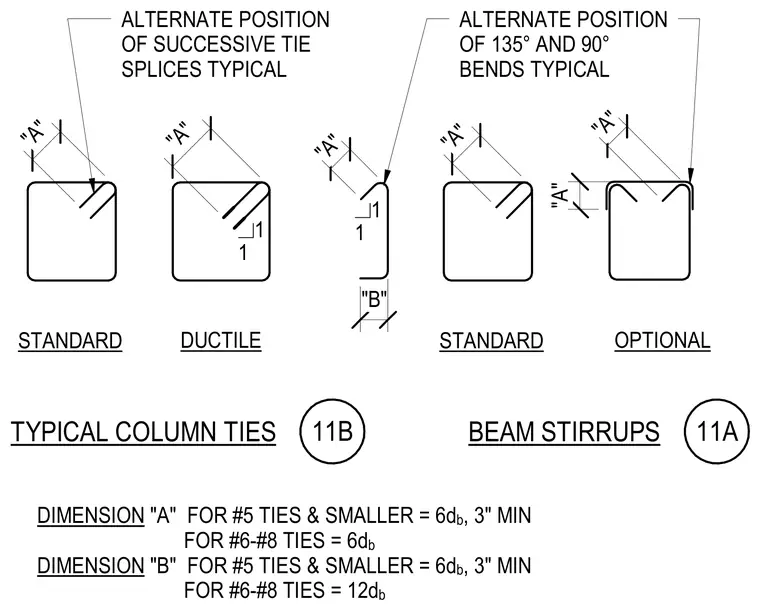

Standard and ductile column ties and beam stirrups feature specific hook configurations, bend angles, and dimensioning criteria for bar sizes ranging from number five and smaller up to number eight. Dimension A requires six bar diameters or three inches minimum for number five ties and smaller, and six bar diameters for number six through number eight ties. Dimension B requires six bar diameters or three inches minimum for number five ties and smaller, and twelve bar diameters for number six through number eight ties. Alternate positions for successive tie splices and one hundred thirty-five degree and ninety degree bends provide standard and optional detailing configurations.
