Structural · S-J2QHA

Post Housekeeping Pad Base Plate Detail

Materials

Elements

Columns Floors / Slabs Decks Bracing Anchors / Embeds Connections / Plates Reinforcing

Connections

Gusset Plate Base Plate / Anchorage Bracing Connection Welded Connection Shear Stud / Composite Deck Attachment Embed Plate

About this detail

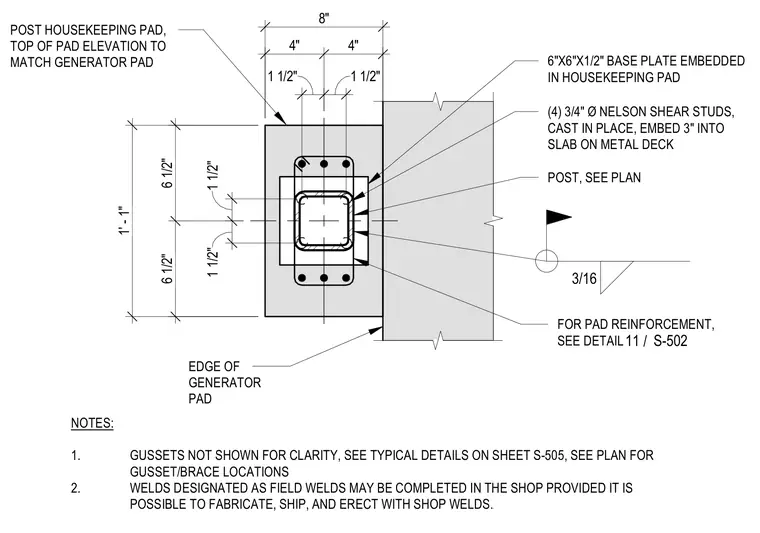

A structural post is supported by a six-by-six by one-half-inch steel base plate embedded within a concrete housekeeping pad. Four three-quarter-inch diameter Nelson shear studs are cast in place and embedded three inches into the slab on metal deck. The top of the housekeeping pad elevation is set to match the adjacent generator pad edge. Pad reinforcement is detailed on sheet S-502. Gussets are omitted for clarity but referenced on sheet S-505, with brace locations coordinated per the structural plan.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
