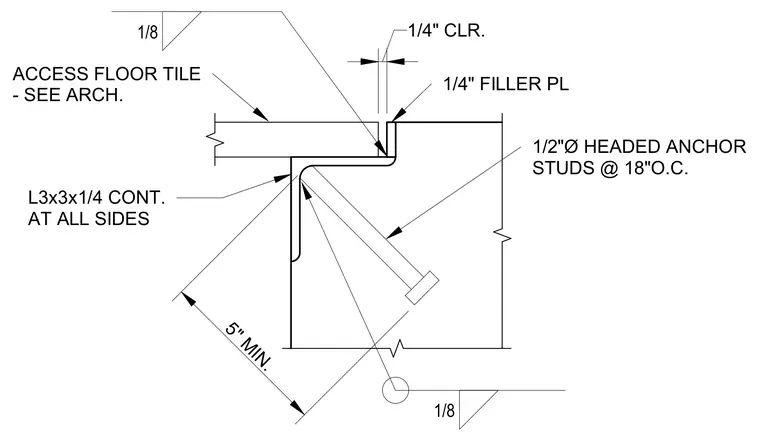

Access floor tile is supported at the perimeter by a continuous L3x3x1/4 angle with a 1/4-inch filler plate and 1/4-inch clearance at the vertical face. The continuous angle is anchored into the structural substrate using 1/2-inch diameter headed anchor studs spaced at 18 inches on center with a 5-inch minimum embedment. Fillet welds of 1/8-inch size secure the angle assembly as detailed. Access floor tile sizing and finish are coordinated with the architectural drawings.
1/2"Ø HEADED ANCHOR STUDS @ 18"O.C. 1/4" FILLER PL 1/4" CLR. ACCESS FLOOR TILE - SEE ARCH. L3x3x1/4 CONT. AT ALL SIDES 5" MIN. 1/8 1/8
