Structural · S-J2FQB

Column and Beam Connection with Deck Closure Plate

Elements

Connections

About this detail

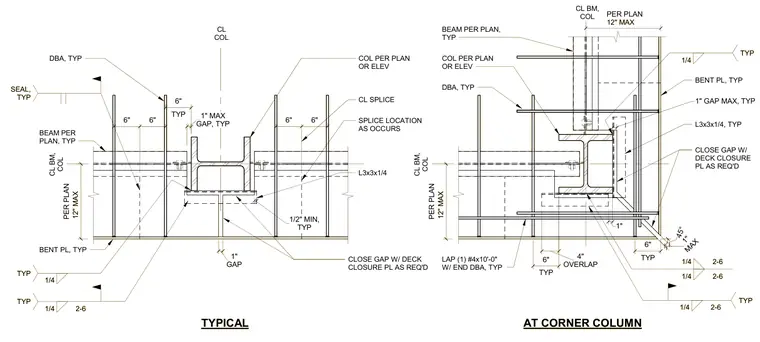

Structural steel column and beam connections feature structural steel shapes, bent plates, and angle profiles with specified gaps and weld sizes. At the standard condition, a steel column is positioned with a one-inch maximum gap, tied to adjacent beams sized per plan with a minimum one-half-inch gap, using L3x3x1/4 angles and quarter-inch fillet welds typical. Gaps are closed using deck closure plates as required with sealant applied typically. At the corner column condition, a four-inch overlap with one number four by ten-foot reinforcing bar having an end development bar anchor is detailed alongside a forty-five degree corner configuration with a one-inch maximum gap.
