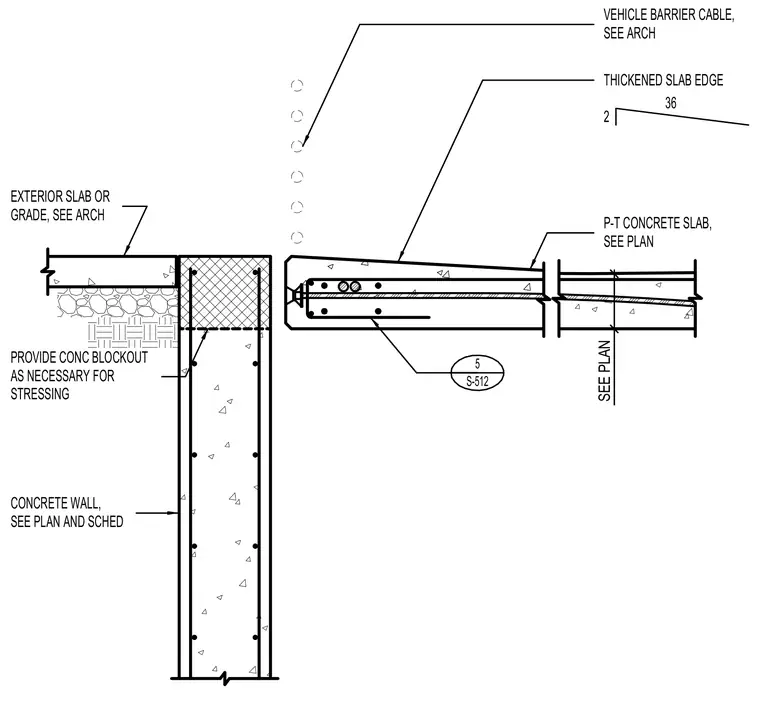

A post-tensioned concrete slab features a thickened slab edge adjacent to a cast-in-place concrete wall. The slab includes internal post-tensioning tendons and reinforcing steel, with provisions for a concrete blockout as necessary for stressing. Vehicle barrier cables are coordinated per architectural drawings at the slab edge. An exterior slab on grade or finish grade sits adjacent to the wall.
5 S-512 P-T CONCRETE SLAB, SEE PLAN VEHICLE BARRIER CABLE, SEE ARCH THICKENED SLAB EDGE 36 2 CONCRETE WALL, SEE PLAN AND SCHED EXTERIOR SLAB OR GRADE, SEE ARCH PROVIDE CONC BLOCKOUT AS NECESSARY FOR STRESSING SEE PLAN
