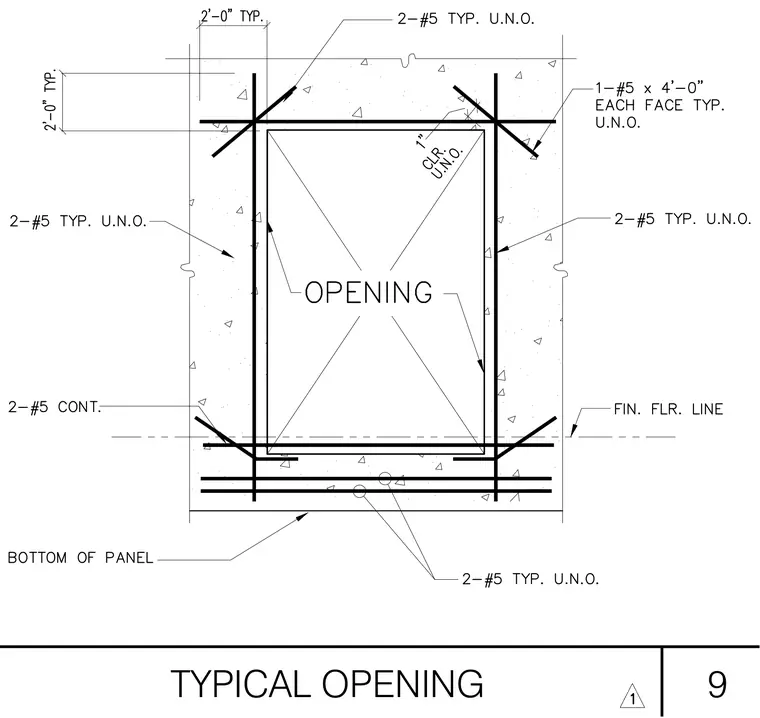

This concrete wall opening detail includes two number five diagonal bars at each corner placed typically unless noted otherwise, extending two feet out with a one inch clearance. Additional reinforcement consists of one number five by four foot bar on each face typical unless noted otherwise, paired with two number five continuous bars spanning the lower zone. Finished floor and bottom of panel lines establish vertical positioning relative to the opening.
