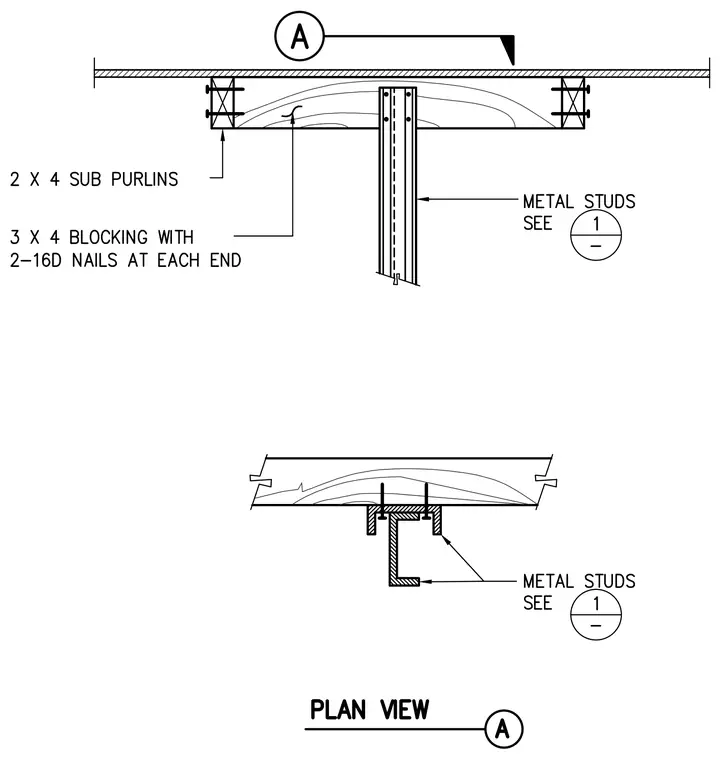

Metal studs are braced laterally against wood sub-purlins using three by four wood blocking secured with two 16d nails at each end. Two by four sub purlins provide the structural backing for the ceiling strut assembly. Metal studs are sized per plan and tied back into the wood framing framework.
