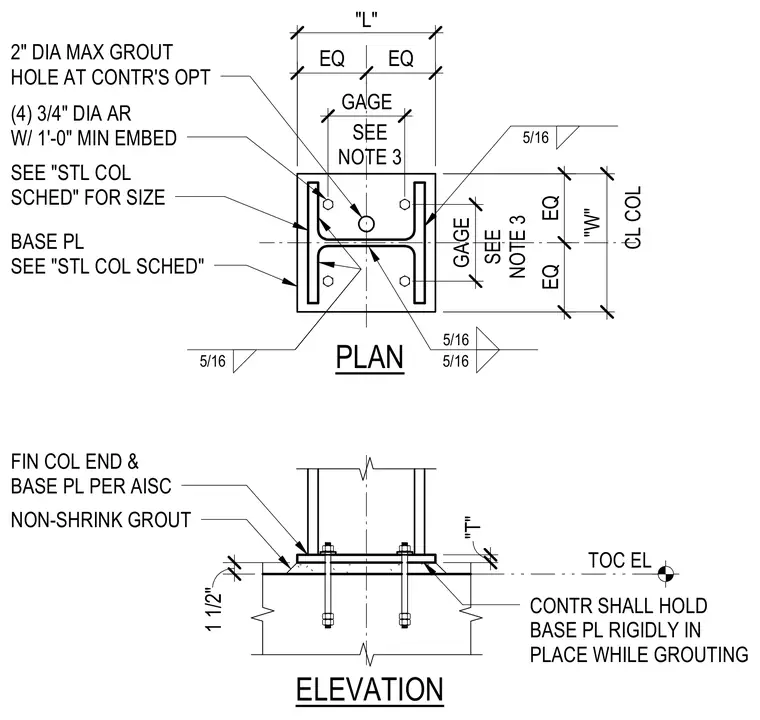

A structural steel column bears on a base plate secured by four three-quarter-inch diameter anchor rods with a one-foot-zero-inch minimum embedment into the concrete support. The column end and base plate are finished per AISC standards, with five-sixteenths inch fillet welds connecting the column to the base plate. A two-inch maximum diameter grout hole is provided at the contractor's option, and non-shrink grout fills the one-and-one-half-inch space beneath the plate. The contractor must hold the base plate rigidly in place during the grouting process.
TOC EL 2" DIA MAX GROUT HOLE AT CONTR'S OPT (4) 3/4" DIA AR W/ 1'-0" MIN EMBED SEE "STL COL SCHED" FOR SIZE BASE PL SEE "STL COL SCHED" FIN COL END & BASE PL PER AISC NON-SHRINK GROUT CONTR SHALL HOLD BASE PL RIGIDLY IN PLACE WHILE GROUTING 5/16 5/16 5/16 5/16 ELEVATION PLAN CL COL 1" 1 1/2" 18" 10" EQ EQ 18" EQ EQ 10" SEE NOTE 3 SEE NOTE 3 GAGE "W" GAGE "L" "T"
