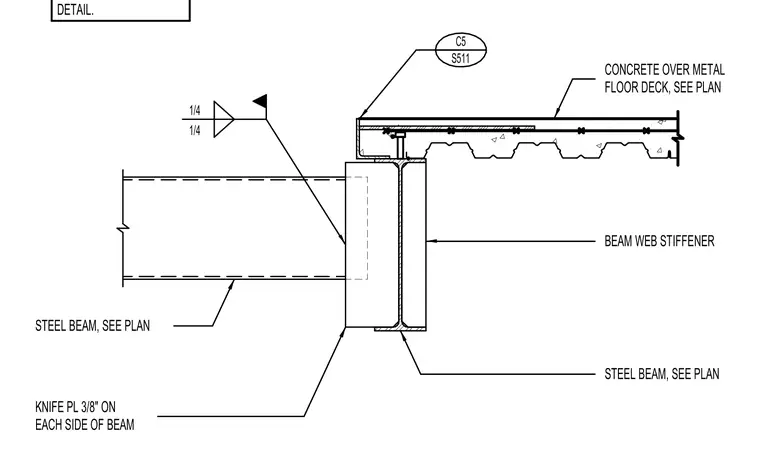

This connection details a steel beam framing into another structural steel member using three-eighths-inch knife plates welded on each side of the supported beam. A supporting steel beam receives the knife plate connection and features a beam web stiffener to handle concentrated loads from the framing member. A concrete topping slab over a metal floor deck bears on top of the supporting steel beam. Fillet welds of one-quarter-inch size secure the connection assemblies.
DETAIL. 1/4 1/4 CONCRETE OVER METAL FLOOR DECK, SEE PLAN BEAM WEB STIFFENER STEEL BEAM, SEE PLAN STEEL BEAM, SEE PLAN KNIFE PL 3/8" ON EACH SIDE OF BEAM C5 S511
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
