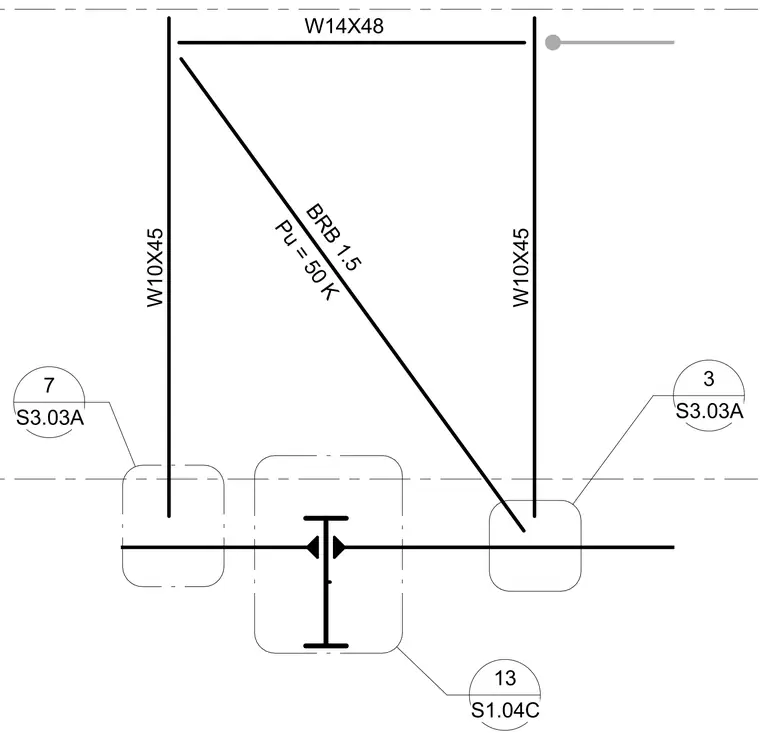

A buckling-restrained brace frame assembly features a W14x48 top beam supported by two vertical W10x45 columns. A diagonal BRB 1.5 buckling-restrained brace is incorporated into the frame with an axial design load Pu of 50 kips. Connection details are referenced to sheets S3.03A and S1.04C.
