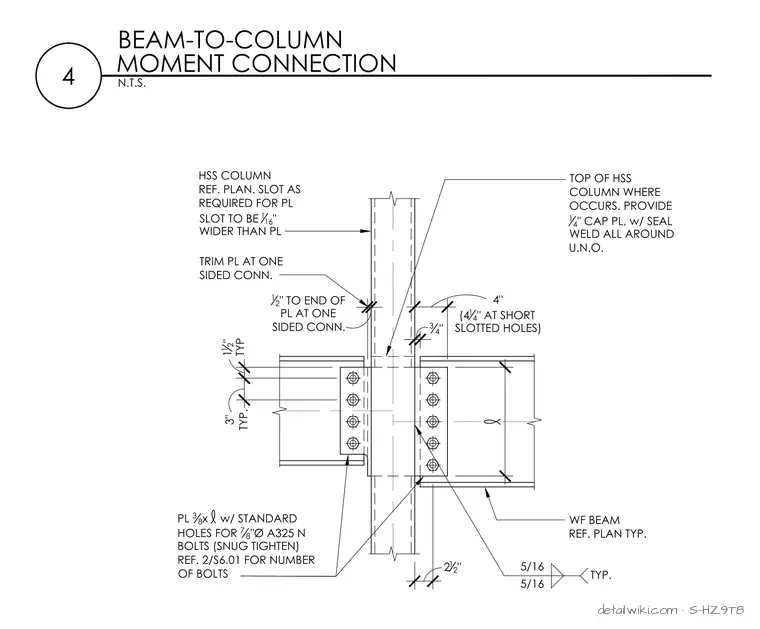

A wide-flange beam frames into a hollow structural section column with a plate connection. The column is slotted as required, with the slot made one-sixteenth inch wider than the plate, and receives a one-quarter inch cap plate with a seal weld all around unless noted otherwise. The connection plate is three-eighths inch thick with standard holes for seven-eighths inch diameter ASTM A325-N bolts installed snug tight, referencing sheet 2/S6.01 for the number of bolts. The plate is trimmed at one-sided connections, maintaining one-half inch to the end of the plate. Fillet welds of five-sixteenths inch typical secure the plate assemblies.
4 BEAM-TO-COLUMN MOMENT CONNECTION N.T.S. 3" TYP. 1 12 " TYP 2 1 2 " 3 4 " 4" (4 1 4 " AT SHORT SLOTTED HOLES) 12 " TO END OF PL AT ONE SIDED CONN. TOP OF HSS COLUMN WHERE OCCURS. PROVIDE 14 " CAP PL, w/ SEAL WELD ALL AROUND U.N.O. WF BEAM REF. PLAN TYP. PL 3 8 x w/ STANDARD HOLES FOR 7 8 "Ø A325 N BOLTS (SNUG TIGHTEN) REF. 2/S6.01 FOR NUMBER OF BOLTS TRIM PL AT ONE SIDED CONN. HSS COLUMN REF. PLAN. SLOT AS REQUIRED FOR PL SLOT TO BE 1 16 " WIDER THAN PL TYP. 5/16 5/16
