Structural · S-HZ84S

Dunnage Platform Screenwall Framing Plan and Corner Detail

Materials

Steel

Elements

Columns Beams Arches Connections / Plates

Connections

HSS Connection Bolted Connection

About this detail

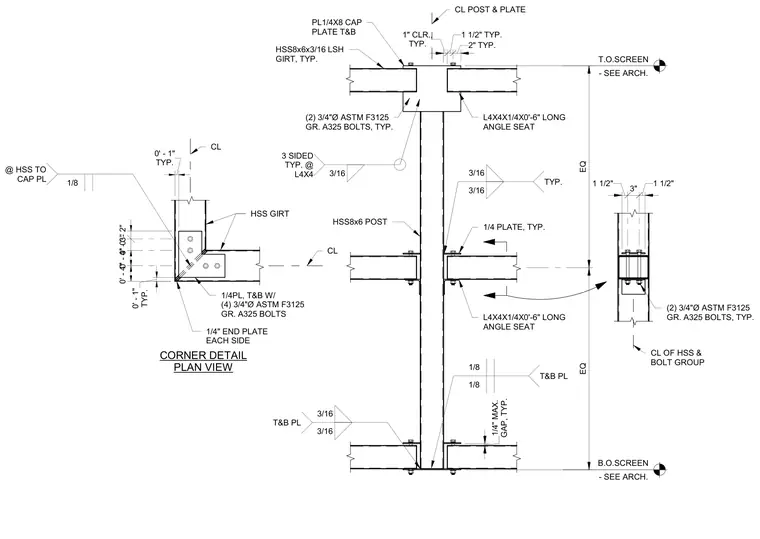

This structural plan detail shows a dunnage platform screenwall framing assembly composed of HSS8x6 posts and HSS8x6x3/16 girts connected via top and bottom cap plates and angle seats. The girts attach to the posts using L4x4x1/4 angle seats secured with two 3/4-inch-diameter ASTM F3125 Grade A325 bolts. Corner connections incorporate a 1/4-inch end plate on each side with top and bottom plates fastened using four 3/4-inch-diameter ASTM F3125 Grade A325 bolts. Three-sided fillet welds of 3/16-inch size secure the angle seats and plates, supplemented by 1/8-inch welds at the HSS-to-cap plate connections. A typical maximum gap of 1/4 inch is maintained between framing elements.
