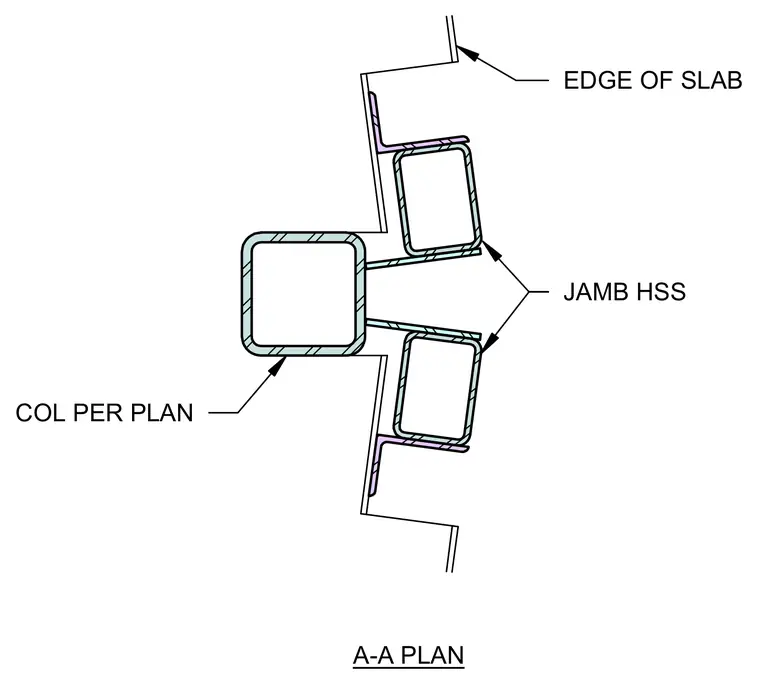

Two rectangular hollow structural section members serve as jambs adjacent to a larger hollow structural section column per plan at the edge of the slab. Steel angles and formed metal profiles tie the jamb assembly into the slab edge alignment.
