Structural · S-HYFDR

Concrete Conduit Encasement and Slab Transition Section

Materials

Elements

About this detail

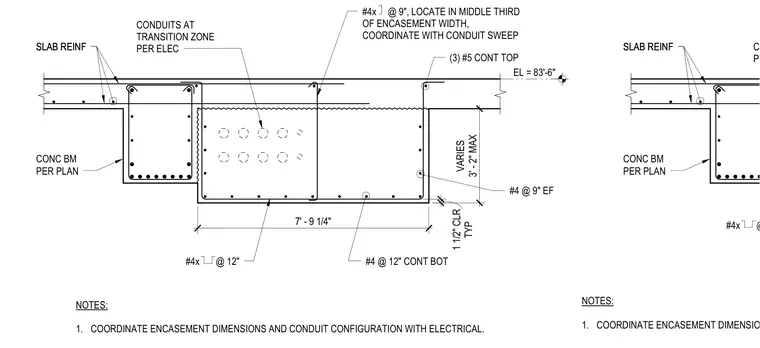

This structural section details a concrete conduit encasement integrated with a concrete slab and beam assembly at elevation 83'-6". The encasement measures 7'-9 1/4" wide with a variable depth up to 3'-2" maximum, requiring coordination of encasement dimensions and conduit configuration with electrical drawings. Reinforcement consists of number four bars at twelve inches spacing continuously at the bottom, three number four extra ties at twelve inches spacing, number four bars at nine inches each face, and three number five continuous bars at the top of the slab. Concrete clear cover is maintained at one and one-half inches typical throughout. Extra ties are positioned within the middle third of the encasement width to coordinate with conduit sweeps.
