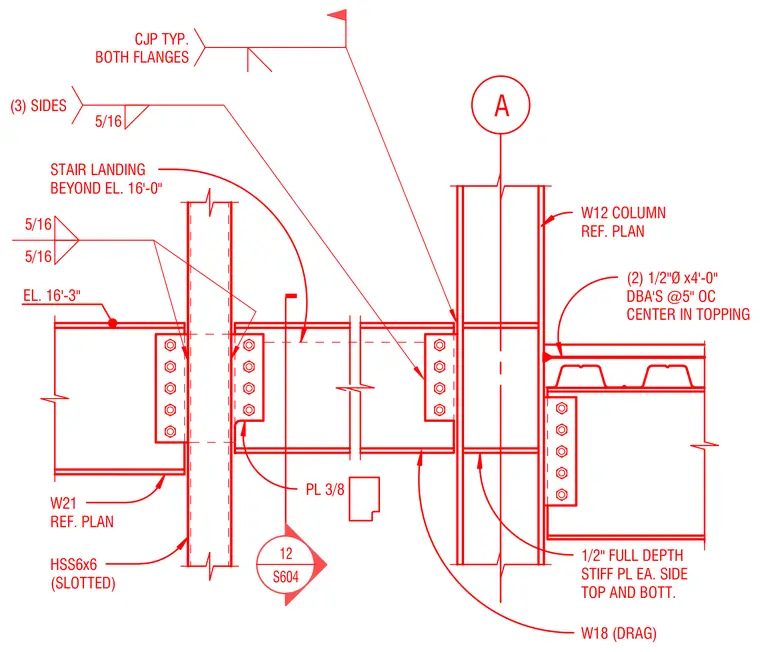

A W18 drag beam connects to a W12 column with a complete-joint-penetration weld on both flanges and one-half inch full-depth stiffener plates on each side at the top and bottom. An HSS6x6 slotted structural steel tube intersects the assembly with five-sixteenth-inch welds on three sides. A W21 beam frames into the connection with a three-eighths-inch plate and five-sixteenth-inch fillet welds. Two one-half-inch diameter by four-foot-long deformed bar anchors at five inches on center are centered in the concrete topping.
STAIR LANDING BEYOND EL. 16'-0" 5/16 (3) SIDES A W12 COLUMN REF. PLAN W18 (DRAG) W21 REF. PLAN HSS6x6 (SLOTTED) 1/2" FULL DEPTH STIFF PL EA. SIDE TOP AND BOTT. EL. 16'-3" 5/16 5/16 CJP TYP. BOTH FLANGES PL 3/8 12 S604 ________________________________________________________________________________________________________________________________________________________________________________________________ _______ (2) 1/2"Ø x4'-0" DBA'S @5" OC CENTER IN TOPPING
