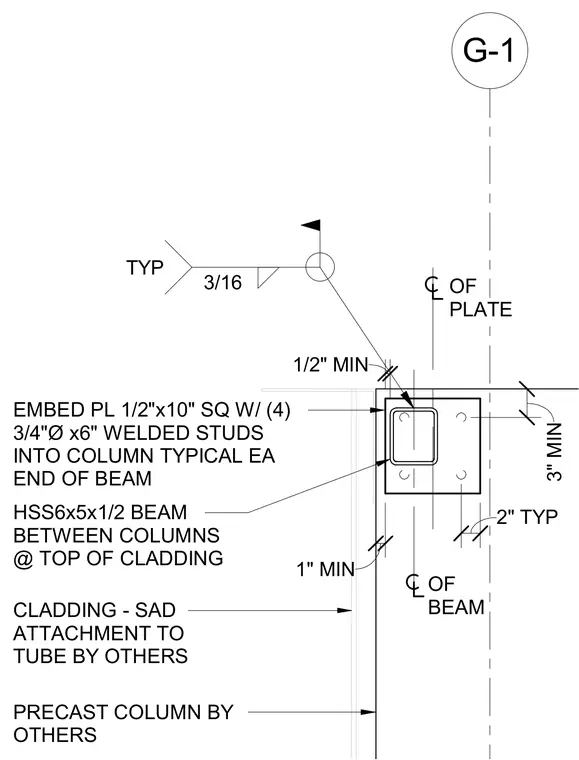

An HSS6x5x1/2 structural steel beam spans between columns at the top of the cladding. The beam connects to a 1/2-inch by 10-inch square embed plate anchored into the precast concrete column by four 3/4-inch diameter by 6-inch welded studs. A 3/16-inch fillet weld secures the assembly at each end of the beam. The precast column and cladding attachment are provided by others.
G-1 HSS6x5x1/2 BEAM BETWEEN COLUMNS @ TOP OF CLADDING PRECAST COLUMN BY OTHERS CLADDING - SAD ATTACHMENT TO TUBE BY OTHERS OF PLATE EMBED PL 1/2"x10" SQ W/ (4) 3/4"Ø x6" WELDED STUDS INTO COLUMN TYPICAL EA END OF BEAM 3/16 TYP OF BEAM 3" MIN 2" TYP 1" MIN 1/2" MIN
