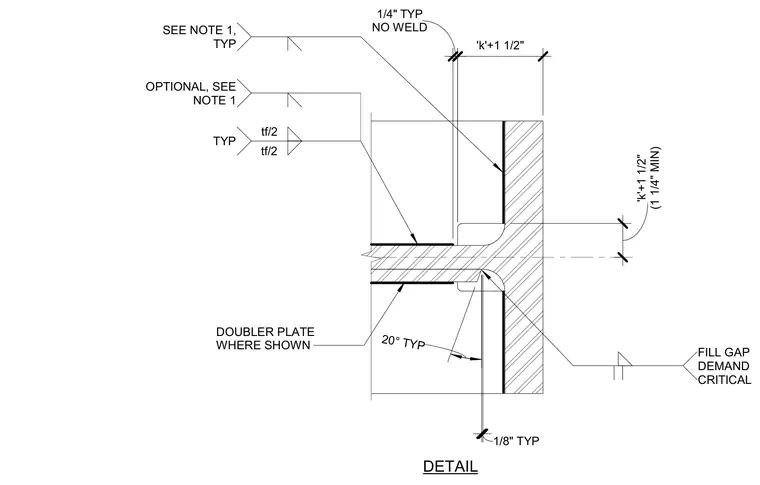

Continuity plates are welded to the column web aligned with the beam flanges, featuring specific corner bevels, dimensioned clearances, and optional doubler plates where indicated. The connection includes a one-quarter-inch typical non-welded gap at the beam web transition, with fill gap demand-critical weld requirements specified for the joint. Dimensions reference the column's k-distance plus one and a half inches with a one-and-quarter-inch minimum, and twenty-degree bevels at the web cutout.
DETAIL FILL GAP DEMAND CRITICAL DOUBLER PLATE WHERE SHOWN OPTIONAL, SEE NOTE 1 SEE NOTE 1, TYP tf/2 tf/2 TYP NO WELD 1/4" TYP 'k'+1 1/2" (1 1/4" MIN) 'k'+1 1/2" 1/8" TYP 20° TYP
