An exterior steel stair stringer formed by a C15 channel supports precast concrete stair treads and ties into a reinforced concrete grade beam at the base. The stringer is welded with a five-sixteenths inch complete joint penetration weld ground smooth and anchors to an eighteen by eighteen by three-quarters inch base plate. Four three-quarters inch diameter anchor bolts secure the base plate over one and one-half inches of non-shrink grout set atop the grade beam. Exterior grade and top of foundation elevations are sized per plan.

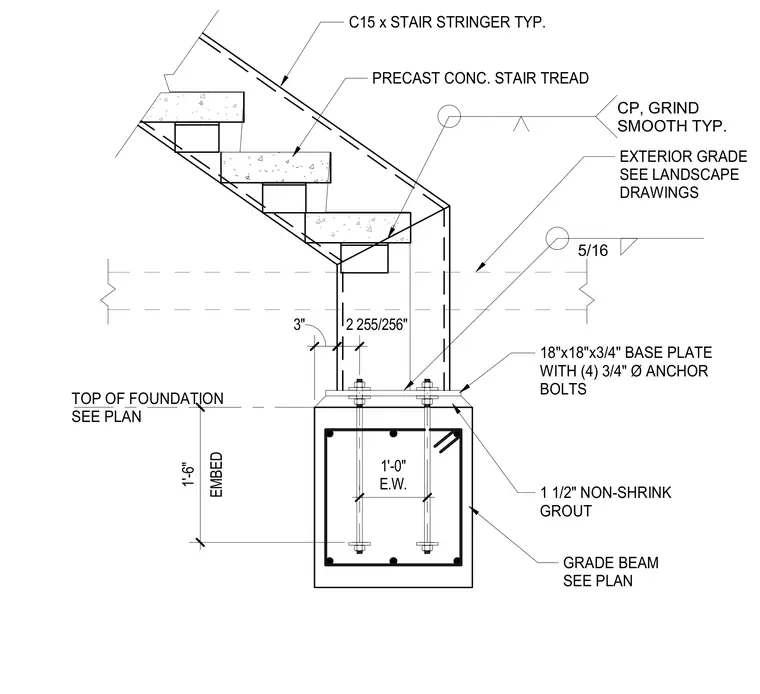

C15 x STAIR STRINGER TYP. PRECAST CONC. STAIR TREAD EXTERIOR GRADE SEE LANDSCAPE DRAWINGS 18"x18"x3/4" BASE PLATE WITH (4) 3/4" Ø ANCHOR BOLTS 1 1/2" NON-SHRINK GROUT GRADE BEAM SEE PLAN TOP OF FOUNDATION SEE PLAN EMBED 1'-6" 5/16 CP, GRIND SMOOTH TYP. 1'-0" E.W. 2 255/256" 3"
