Cold-formed steel studs are positioned on both sides of a hollow structural section or pipe column and attached using one-quarter-inch-diameter self-drilling screws spaced at six inches on center. Two screws are located within three inches of the ends of the studs or structural member. The stud sizes are determined per the elevations.

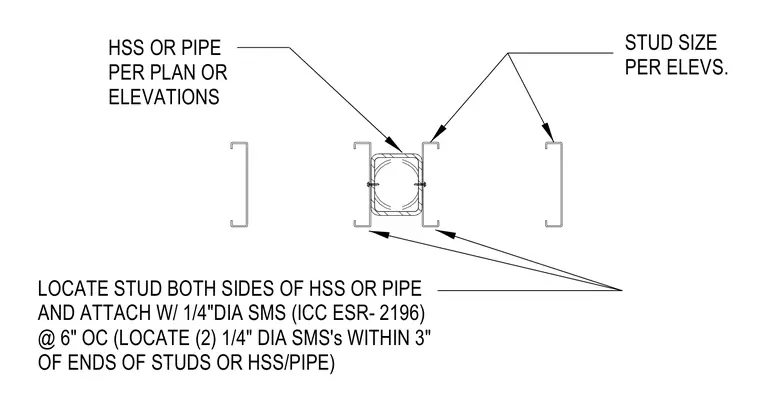

HSS OR PIPE PER PLAN OR ELEVATIONS LOCATE STUD BOTH SIDES OF HSS OR PIPE AND ATTACH W/ 1/4"DIA SMS (ICC ESR- 2196) @ 6" OC (LOCATE (2) 1/4" DIA SMS's WITHIN 3" OF ENDS OF STUDS OR HSS/PIPE) STUD SIZE PER ELEVS.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
