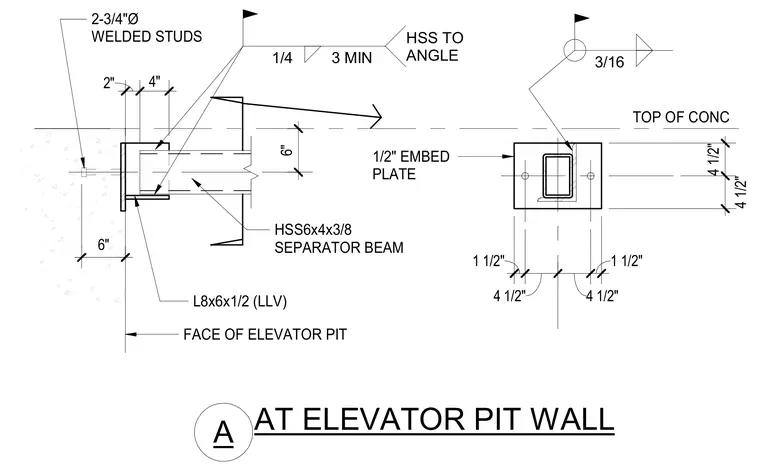

An HSS6x4x3/8 separator beam frames into a half-inch embed plate secured to a concrete elevator pit wall. The connection utilizes an L8x6x1/2 angle welded with a quarter-inch fillet weld and a three-inch minimum dimension. Two three-quarter-inch diameter welded studs anchor the embed plate into the concrete wall.
TOP OF CONC FACE OF ELEVATOR PIT HSS6x4x3/8 SEPARATOR BEAM L8x6x1/2 (LLV) 1/2" EMBED PLATE 2-3/4"Ø WELDED STUDS AT ELEVATOR PIT WALL A 2" 4" 6" 6" 1 1/2" 4 1/2" 4 1/2" 1 1/2" 4 1/2" 4 1/2" 3/16 1/4 3 MIN HSS TO ANGLE
