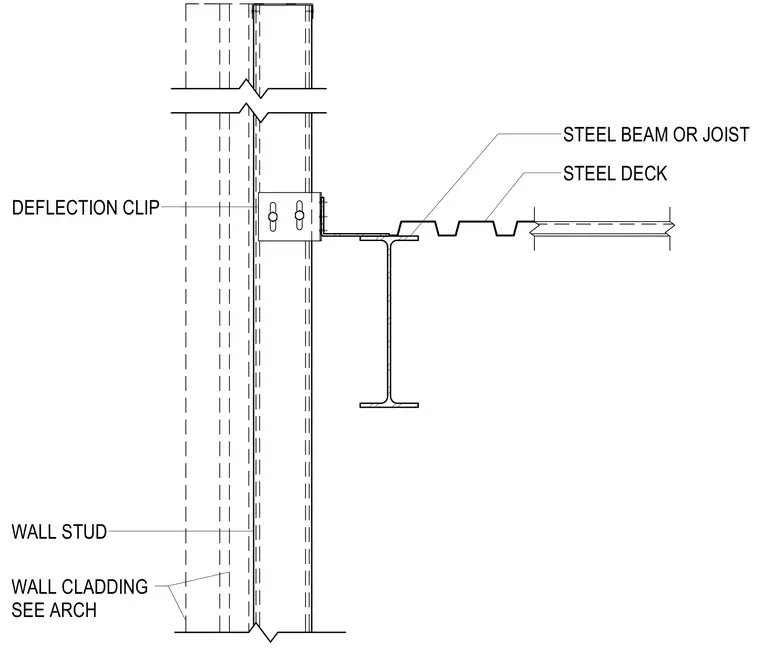

Vertical wall studs connect to a steel beam or joist supporting a steel deck through a deflection clip. The slotted connection accommodates vertical movement of the structural floor above without transferring vertical loads to the interior wall framing. Wall cladding is coordinated per the architectural drawings.
