Structural · S-HXKQD

Restrained Braced Frames (Brbf)

Materials

Steel

Elements

Columns Beams Bracing

Connections

Braced Frame Connection Bracing Connection

About this detail

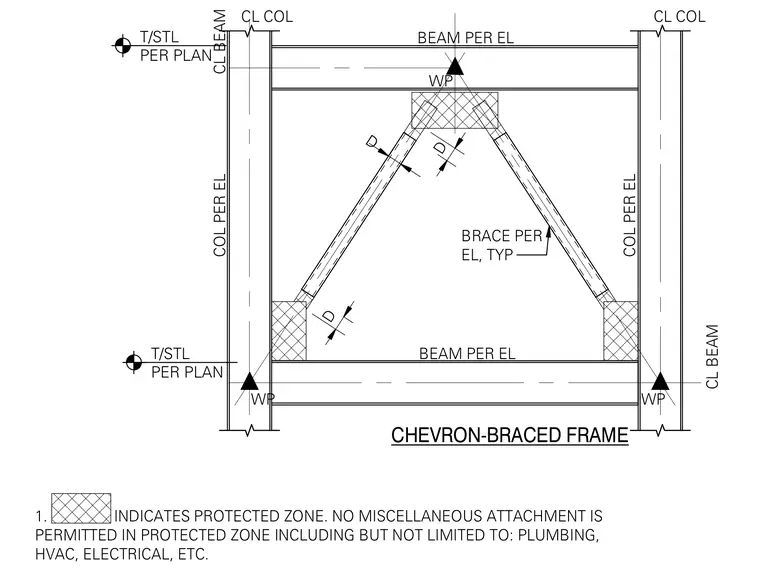

A chevron-braced steel frame features vertical columns and horizontal beams connected by diagonal braces meeting at work points per elevation. Cross-hatched protected zones are established at beam-brace intersections, strictly prohibiting any miscellaneous plumbing, HVAC, or electrical attachments. Centerlines are marked for columns and beams, with top of steel elevations sized per plan.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
