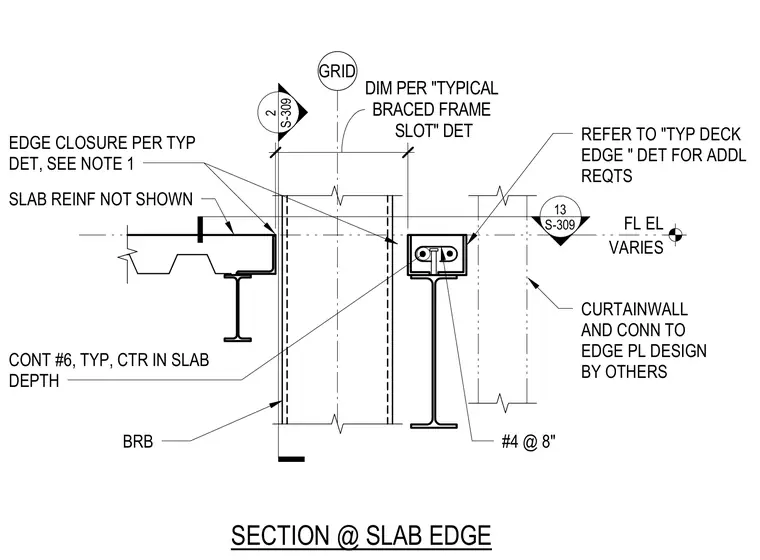

A structural slab edge condition adjacent to a buckling-restrained brace and steel framing members. A continuous number six reinforcing bar is centered within the slab depth, accompanied by number four bars at eight inches spacing. Edge closure is provided per typical details with slab reinforcement omitted from view for clarity. A curtain wall and its connection to the edge plate are designed by others. Dimensions for the slot conform to the typical braced frame slot detail.
S-309 2 S-309 13 BRB EDGE CLOSURE PER TYP DET, SEE NOTE 1 SECTION @ SLAB EDGE REFER TO "TYP DECK EDGE " DET FOR ADDL REQTS SLAB REINF NOT SHOWN GRID VARIES FL EL CONT #6, TYP, CTR IN SLAB DEPTH #4 @ 8" CURTAINWALL AND CONN TO EDGE PL DESIGN BY OTHERS SLOT" DET DIM PER "TYPICAL BRACED FRAME
