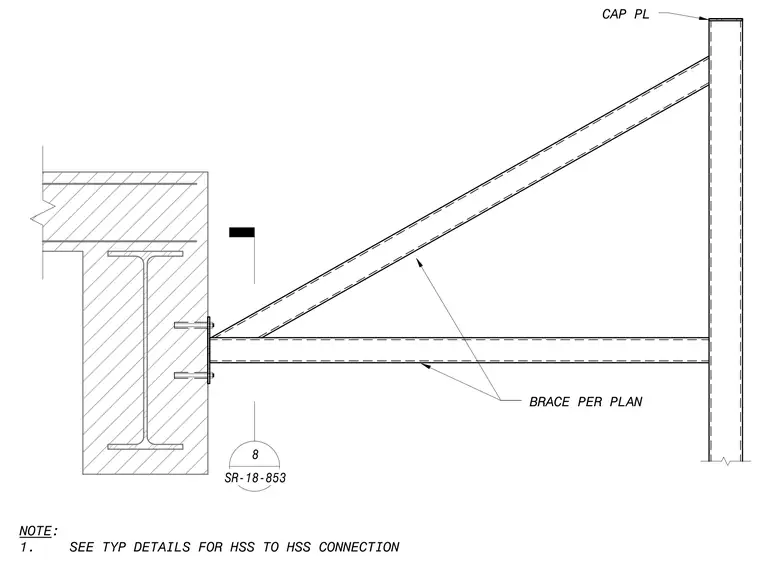

A hollow structural section brace connects to a concrete wall featuring an embedded structural steel beam and a cap plate at the top of the vertical member. The assembly includes bracing members sized per plan and refers to typical details for hollow structural section to hollow structural section connections.
8 SR-18-853 CAP PL BRACE PER PLAN NOTE: 1. SEE TYP DETAILS FOR HSS TO HSS CONNECTION
