An embed plate assembly consists of a three-eighths-inch by four-inch by eight-inch steel plate equipped with two one-half-inch diameter by four-inch long headed anchor studs welded to the back. The plate includes pre-drilled screw holes positioned within the perimeter for attachment purposes.

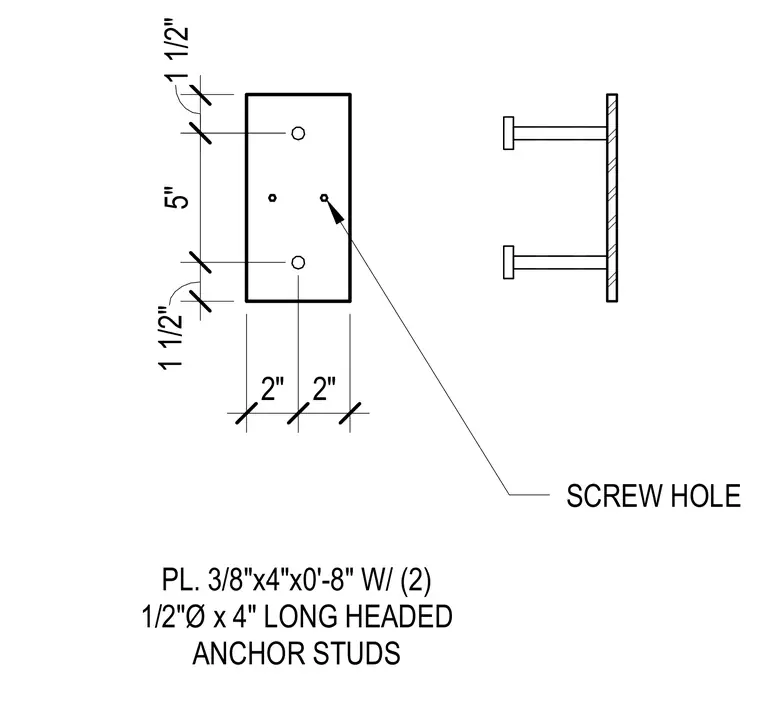

1 1/2" 2" 2" 5" 1 1/2" PL. 3/8"x4"x0'-8" W/ (2) 1/2"Ø x 4" LONG HEADED ANCHOR STUDS SCREW HOLE
