An eight-inch concrete foundation wall is supported by a concrete footing and reinforced with number five bars at eighteen inches on center each way, with alternate bends and hooked dowels lapped per structural notes. A concrete slab on grade ties into the wall above the footing at a specified minimum thirty-inch height. The slab must be constructed prior to backfilling against the wall. Vertical reinforcing at similar conditions uses number four bars at six inches on center each way.

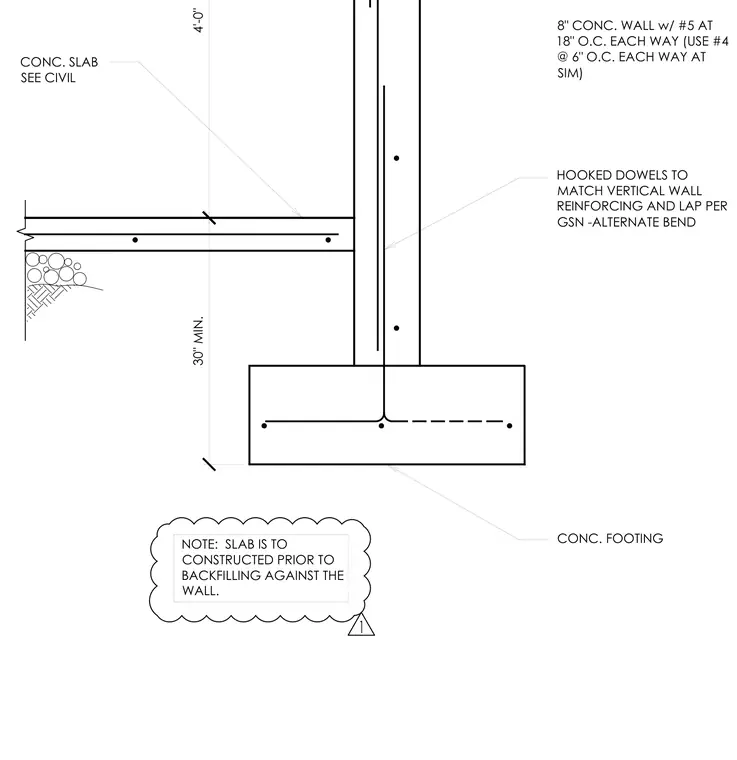

8" CONC. WALL w/ #5 AT 18" O.C. EACH WAY (USE #4 @ 6" O.C. EACH WAY AT SIM) HOOKED DOWELS TO MATCH VERTICAL WALL REINFORCING AND LAP PER GSN -ALTERNATE BEND CONC. FOOTING CONC. SLAB SEE CIVIL 30" MIN. 4'-0" NOTE: SLAB IS TO CONSTRUCTED PRIOR TO BACKFILLING AGAINST THE WALL. 1
