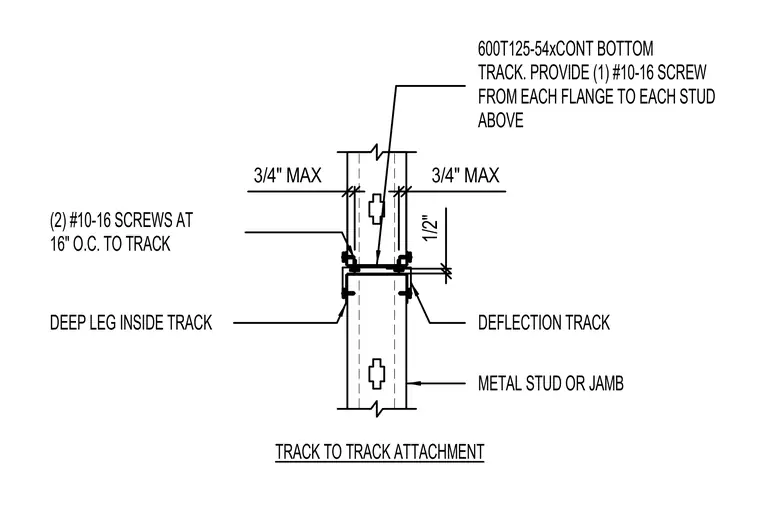

A continuous bottom track of size 600T125-54 nests within a deflection track or deep leg inside track to accommodate vertical movement. Two number 10-16 screws at sixteen inches on center fasten the tracks together along the flanges. One number 10-16 screw connects each flange of the metal stud or jamb above to the track while maintaining a maximum three-quarter-inch gap. A half-inch vertical clearance allows for structural deflection without transferring loads to the partition.
TRACK TO TRACK ATTACHMENT (2) #10-16 SCREWS AT 16" O.C. TO TRACK DEEP LEG INSIDE TRACK DEFLECTION TRACK METAL STUD OR JAMB 600T125-54xCONT BOTTOM TRACK. PROVIDE (1) #10-16 SCREW FROM EACH FLANGE TO EACH STUD ABOVE 1/2" 3/4" MAX 3/4" MAX
