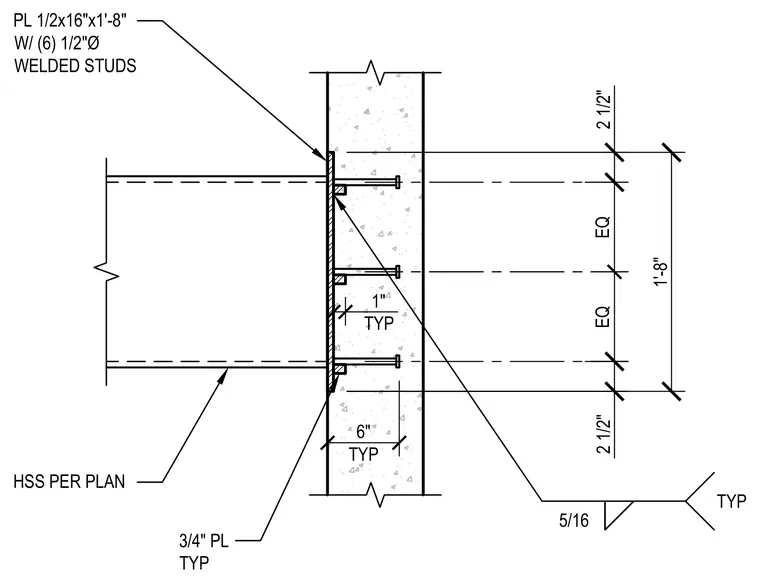

A hollow structural section member connects to a concrete wall using a 1/2-inch by 16-inch by 1-foot 8-inch embed plate equipped with six 1/2-inch diameter welded studs. A 3/4-inch plate joins the hollow structural section to the embed plate with a typical 5/16-inch fillet weld.
EQ 6" TYP HSS PER PLAN 2 1/2" EQ 2 1/2" 1'-8" 1" TYP 3/4" PL TYP PL 1/2x16"x1'-8" W/ (6) 1/2"Ø WELDED STUDS 5/16 TYP
