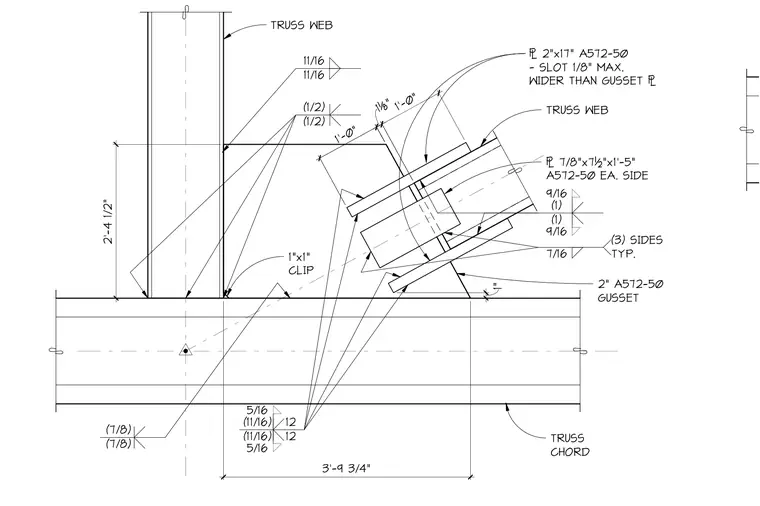

A structural steel truss connection details a vertical truss web and an angled truss web intersecting a continuous truss chord. The angled web member is sandwiched between two 7/8-inch by 7-1/2-inch by 1-foot 5-inch A572-50 plates on each side, connected through a 2-inch A572-50 gusset plate. The gusset plate incorporates a 1/8-inch maximum slot wider than the gusset plate itself. Welds along the members include 5/16-inch fillet welds typically applied to three sides. A 1-inch by 1-inch clip is positioned at the base of the vertical truss web. Dimensions indicate a height of 2 feet 4-1/2 inches for the vertical web layout and a 3-foot 9-3/4-inch span for the connection zone.
2'-4 1/2" 3'-9 3/4" 1" TRUSS WEB 1"x1" CLIP 11/16 11/16 (1/2) (1/2) (7/8) (7/8) TRUSS CHORD 2" A572-50 GUSSET (11/16) 12 (11/16) 12 7/16 (3) SIDES TYP. 5/16 1 " (1) (1) 9/16 TRUSS WEB 7/8"x7½"x1' -5" A572-50 EA. SIDE 2"x17" A572 -50 - SLOT 1/8" MAX. WIDER THAN GUSSET 1'-0" 1'-0" 5/16 9/16
