A lowered structural steel beam connects to the web of a primary supporting member using a welded shear plate and a specified number of bolts. The shear plate welds to the supporting member and bolts to the supported beam web with short slotted holes utilized where noted. A full-depth plate is provided at locations lacking an opposing beam within two feet. Weld sizes, plate thickness, and bolt counts correspond to the structural connection schedule.

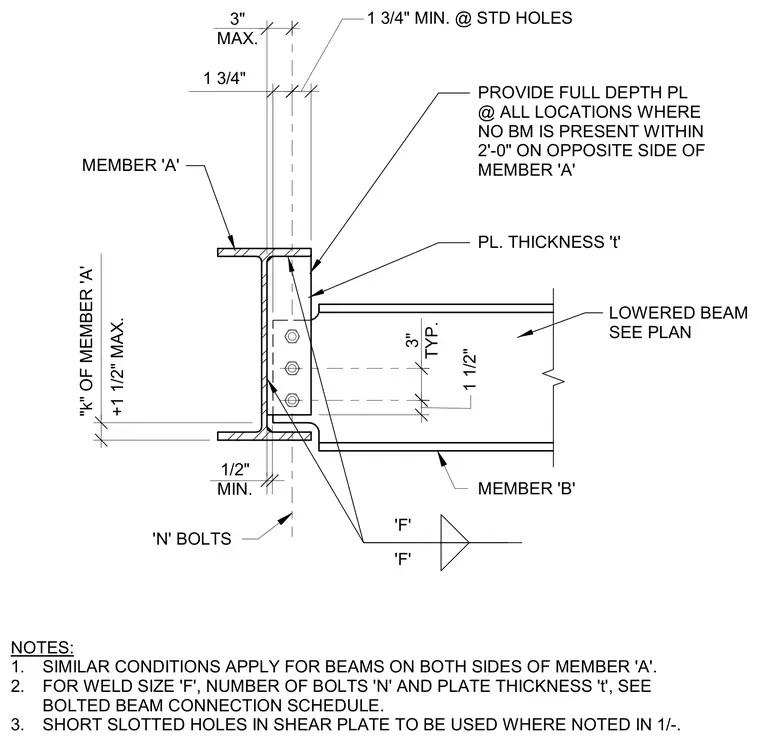

3" TYP. 1 3/4" 3" MAX. 1/2" MIN. 1 1/2" 'F' 'F' 1 3/4" MIN. @ STD HOLES "k" OF MEMBER 'A' +1 1/2" MAX. PROVIDE FULL DEPTH PL @ ALL LOCATIONS WHERE NO BM IS PRESENT WITHIN 2'-0" ON OPPOSITE SIDE OF MEMBER 'A' LOWERED BEAM SEE PLAN MEMBER 'B' MEMBER 'A' NOTES: 1. SIMILAR CONDITIONS APPLY FOR BEAMS ON BOTH SIDES OF MEMBER 'A'. 2. FOR WELD SIZE 'F', NUMBER OF BOLTS 'N' AND PLATE THICKNESS 't', SEE BOLTED BEAM CONNECTION SCHEDULE. 3. SHORT SLOTTED HOLES IN SHEAR PLATE TO BE USED WHERE NOTED IN 1/-. 'N' BOLTS PL. THICKNESS 't'
