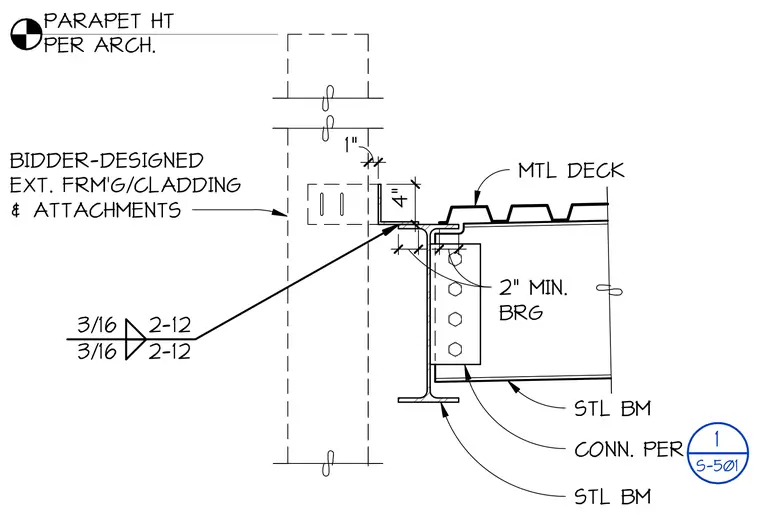

A metal deck bears on a steel beam with a two-inch minimum bearing length, secured by a shear connection with bolts and a welded connection. An angle member is welded to the steel beam with three-sixteenths fillet welds at twelve-inch spacing. Bidder-designed exterior framing and cladding attach to the assembly, with the parapet height determined per architectural drawings.
PARAPET HT PER ARCH. 1" MTL DECK 2" MIN. BRG STL BM BIDDER-DESIGNED EXT. FRM'G/CLADDING & ATTACHMENTS 3/16 2-12 3/16 2-12 4" CONN. PER STL BM 1 S-501
