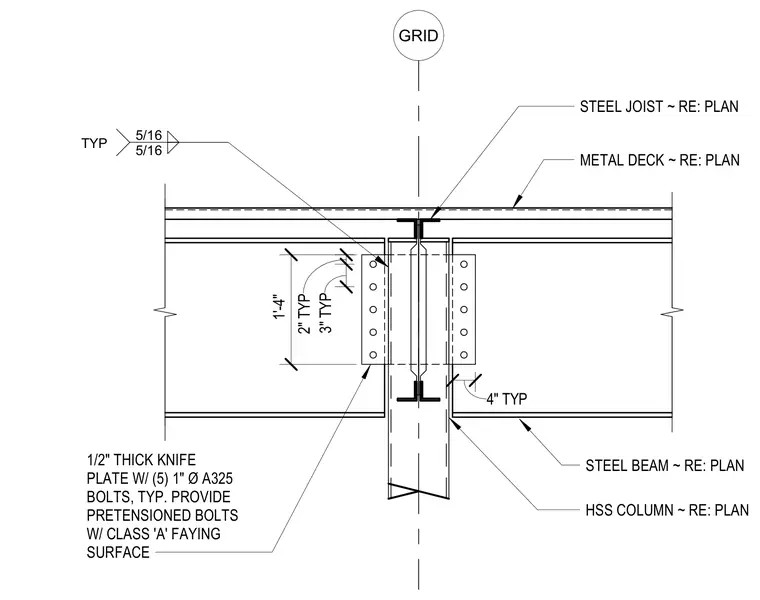

A steel beam connects to a hollow structural section column using a one-half-inch thick knife plate centered on the column axis. The knife plate is secured with five one-inch diameter A325 pretensioned bolts with a Class A faying surface, spaced across a one-foot four-inch vertical span with two-inch and three-inch typical spacings. Fillet welds connect the knife plate to the supporting HSS column and associated framing. A steel joist and metal deck bear above the column and beam assembly.
GRID STEEL BEAM ~ RE: PLAN HSS COLUMN ~ RE: PLAN METAL DECK ~ RE: PLAN STEEL JOIST ~ RE: PLAN 1/2" THICK KNIFE PLATE W/ (5) 1" Ø A325 BOLTS, TYP. PROVIDE PRETENSIONED BOLTS W/ CLASS 'A' FAYING SURFACE 2" TYP 3" TYP 1'-4" 4" TYP 5/16 5/16 TYP
