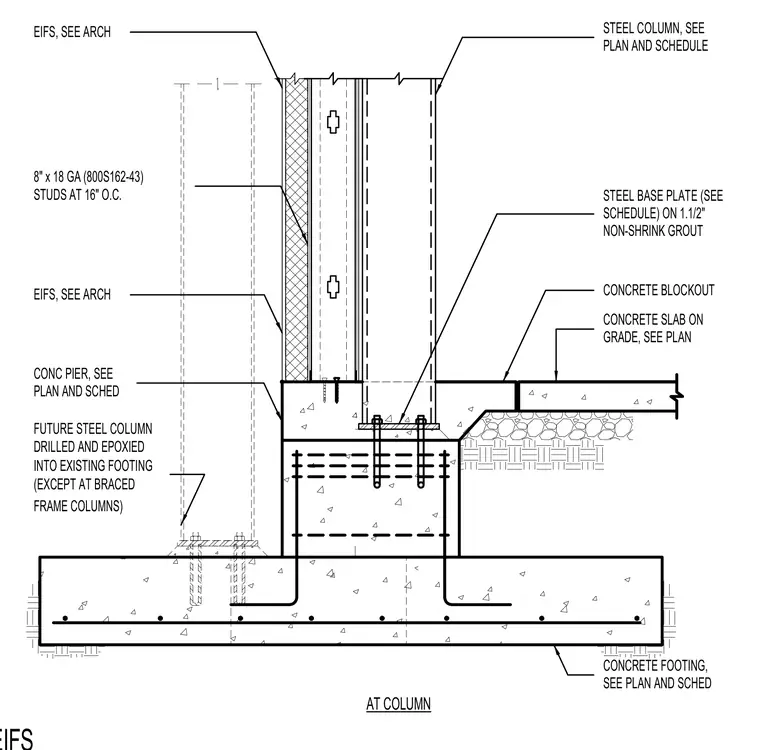

A steel column connects to a steel base plate seated on one and one-half inches of non-shrink grout above a concrete pier and existing concrete footing. Anchor bolts are secured into the footing, accompanied by a concrete blockout adjacent to the concrete slab on grade. Cold-formed steel studs measuring eight inches by eighteen gauge at sixteen inches on center support an exterior insulation and finish system wall assembly. A future steel column is drilled and epoxied into the existing footing except at braced frame columns.
CONCRETE SLAB ON GRADE, SEE PLAN STEEL BASE PLATE (SEE SCHEDULE) ON 1.1/2" NON-SHRINK GROUT STEEL COLUMN, SEE PLAN AND SCHEDULE CONCRETE BLOCKOUT CONCRETE FOOTING, SEE PLAN AND SCHED AT COLUMN EIFS, SEE ARCH 8" x 18 GA (800S162-43) STUDS AT 16" O.C. EIFS, SEE ARCH CONC PIER, SEE PLAN AND SCHED FUTURE STEEL COLUMN DRILLED AND EPOXIED INTO EXISTING FOOTING (EXCEPT AT BRACED FRAME COLUMNS)
