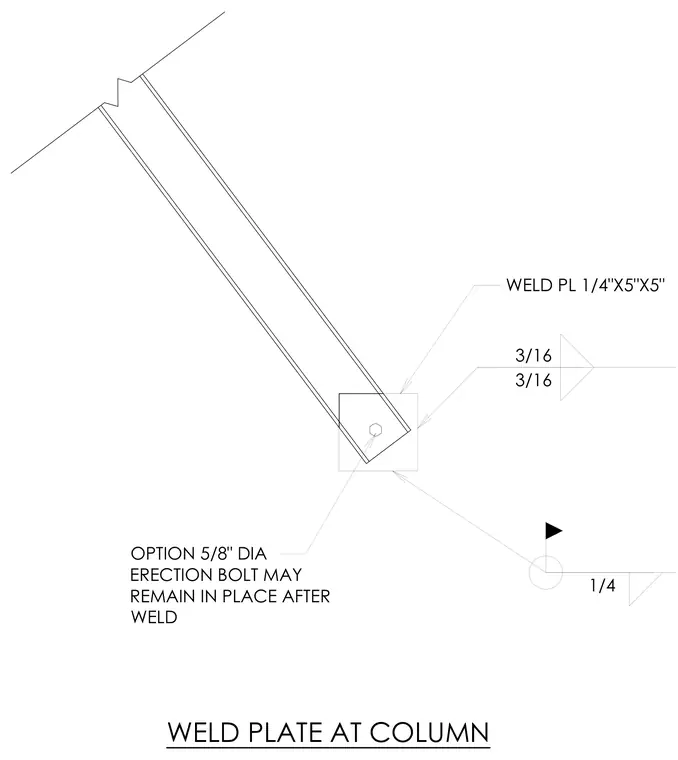

A quarter-inch-by-five-inch-by-five-inch weld plate is attached to the column using three-sixteenth-inch fillet welds. A five-eighths-inch-diameter erection bolt is provided as an option that may remain in place after welding. Additional connection detailing is indicated with a quarter-inch weld symbol.
WELD PL 1/4"X5"X5" WELD PLATE AT COLUMN OPTION 5/8" DIA ERECTION BOLT MAY REMAIN IN PLACE AFTER WELD 3/16 3/16 1/4 ▼
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
