Continuous Upturned Beam Over Column

Materials

Concrete Reinforced Concrete

Elements

Columns Beams Floors / Slabs Expansion / Control Joints Anchors / Embeds Reinforcing

Connections

Base Plate / Anchorage Rebar Splice / Development

About this detail

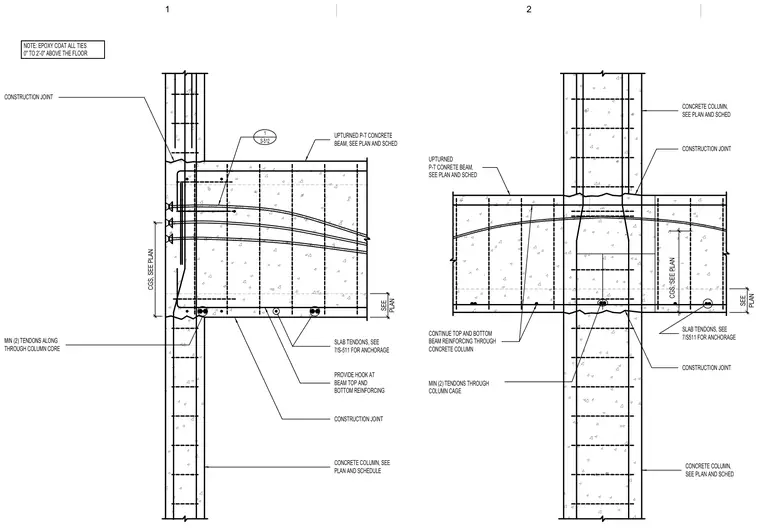

A continuous upturned post-tensioned concrete beam intersects a reinforced concrete column. Top and bottom beam reinforcing continues through the concrete column, supplemented by hooks at the beam top and bottom reinforcing. A minimum of two tendons run through the column core and column cage, with center of gravity of strand sized per plan. Construction joints are located at the beam-column interfaces and floor levels, accompanied by a note requiring epoxy coating on all ties from zero inches to two feet above the floor. Slab tendons feature anchorages detailed per sheet 7/S-511.
