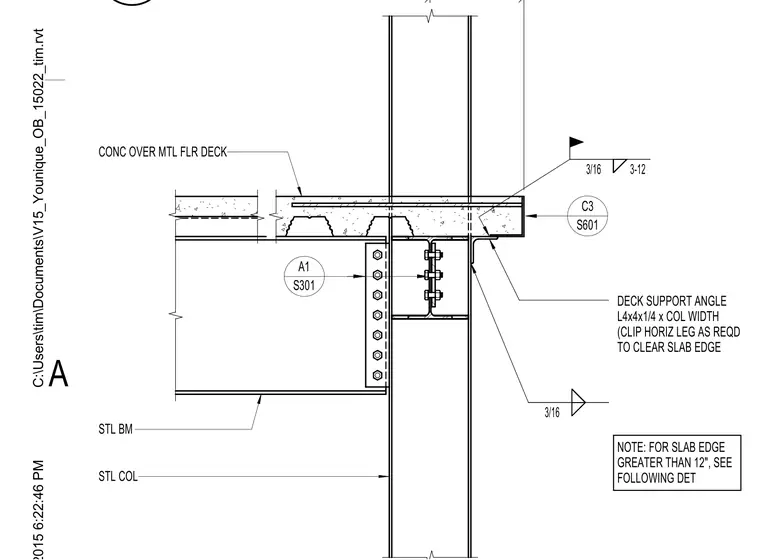

A concrete slab over metal floor deck is supported at the steel column flange by a deck support angle measuring four by four by one-quarter inches spanning the column width. The horizontal leg of the angle is clipped as required to clear the slab edge. A steel beam connects to the steel column flange with a bolted framing connection. Three-sixteenths inch fillet welds secure the angle assembly, with specific weld notes referencing subsequent details for slab edges greater than twelve inches.
DECK SUPPORT ANGLE L4x4x1/4 x COL WIDTH (CLIP HORIZ LEG AS REQD TO CLEAR SLAB EDGE STL COL STL BM CONC OVER MTL FLR DECK NOTE: FOR SLAB EDGE GREATER THAN 12", SEE FOLLOWING DET A1 S301 C3 S601 3/16 3/16 3-12 A C:\Users\tim\Documents\V15_Younique_OB_15022_tim.rvt
