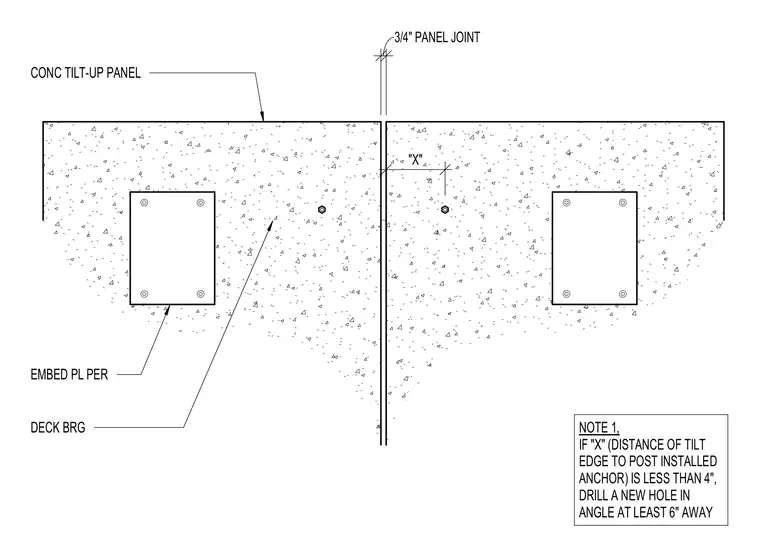

Concrete tilt-up panels feature a three-quarter-inch panel joint with embedded bearing plates for structural support. If dimension X, representing the distance from the tilt edge to a post-installed anchor, measures less than four inches, a new hole must be drilled in the angle at least six inches away.
3/4" PANEL JOINT CONC TILT-UP PANEL DECK BRG EMBED PL PER NOTE 1, IF "X" (DISTANCE OF TILT EDGE TO POST INSTALLED ANCHOR) IS LESS THAN 4", DRILL A NEW HOLE IN ANGLE AT LEAST 6" AWAY "X"
