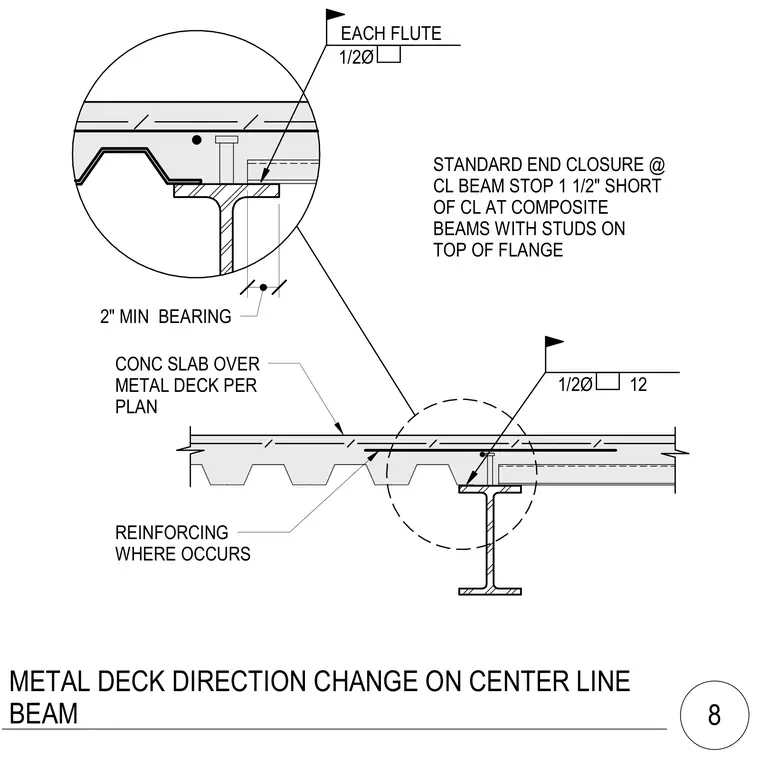

A metal deck direction change occurs over a supporting beam with a concrete slab poured on top. A standard end closure is positioned at the centerline beam, stopping one and one-half inches short of the centerline at composite beams with studs on top of the flange in each flute. Reinforcing steel is placed where specified, maintaining a two-inch minimum bearing requirement.
STANDARD END CLOSURE @ CL BEAM STOP 1 1/2" SHORT OF CL AT COMPOSITE BEAMS WITH STUDS ON TOP OF FLANGE EACH FLUTE REINFORCING WHERE OCCURS 2" MIN BEARING 1/2Ø 12 1/2Ø CONC SLAB OVER METAL DECK PER PLAN METAL DECK DIRECTION CHANGE ON CENTER LINE BEAM 8
