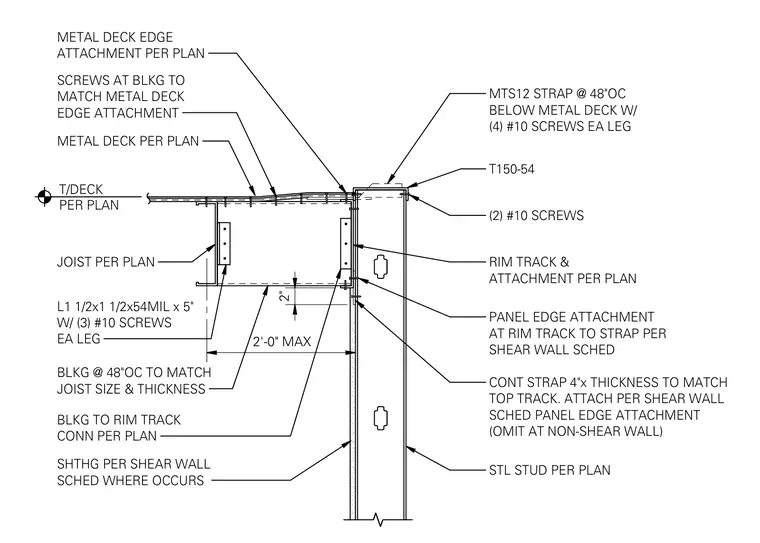

A structural cold-formed steel roof-to-wall connection consists of an exterior steel stud supporting a rim track at the roof level. An MTS12 strap is placed below the metal deck at forty-eight inches on center and secured with four number ten screws on each leg. A T150-54 track member ties into the assembly with two number ten screws. The metal deck bears on the framing per plan with designated edge attachments and screws at blocking. A continuous four-inch strap matching the top track thickness provides panel edge attachment per the shear wall schedule where required. An L1 1/2 by 1 1/2 by 54-mil angle, five inches long, connects blocking to the joist with three number ten screws on each leg, positioned up to two feet maximum from the wall. Sheathing is applied per the shear wall schedule where applicable.
T150-54 (2) #10 SCREWS MTS12 STRAP @ 48"OC BELOW METAL DECK W/ (4) #10 SCREWS EA LEG RIM TRACK & ATTACHMENT PER PLAN PANEL EDGE ATTACHMENT AT RIM TRACK TO STRAP PER SHEAR WALL SCHED CONT STRAP 4"x THICKNESS TO MATCH TOP TRACK. ATTACH PER SHEAR WALL SCHED PANEL EDGE ATTACHMENT (OMIT AT NON-SHEAR WALL) STL STUD PER PLAN JOIST PER PLAN METAL DECK EDGE ATTACHMENT PER PLAN SCREWS AT BLKG TO MATCH METAL DECK EDGE ATTACHMENT METAL DECK PER PLAN L1 1/2x1 1/2x54MIL x 5" W/ (3) #10 SCREWS EA LEG BLKG @ 48"OC TO MATCH JOIST SIZE & THICKNESS BLKG TO RIM TRACK CONN PER PLAN SHTHG PER SHEAR WALL SCHED WHERE OCCURS 2'-0" MAX 2" T/DECK PER PLAN
